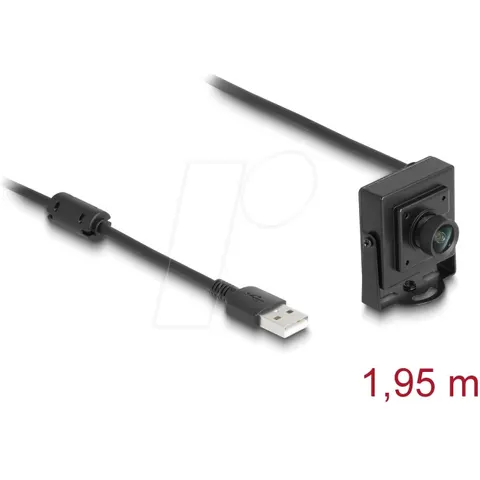

DELOCK 96403 - Kamera USB2.0, 2,1 MP, 100°, Fixfokus

The USB 2.0 camera by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this camera. Technical details Connector: 1 x USB 2.0 Type-A male Resolution: 2.1 megapixel With optical IR filter Output support for YUY2, MJPG Maximum resolution: 1080p (1920 x 1080) Automatic image control functions including: Automatic exposure control (AEC) Automatic white balance (AWB) Automatic band filter (ABF) Automatic black-level calibration (ABLC) Image quality controls including colour saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and automatic 50 / 60 Hz luminance detection Supports scaling Current consumption: sensor active: 120 mA ± 5 mA @ 1920 x 1080 pixel Operating voltage: 5 V DC Operating temperature: 0 °C ~ 60 °C Sensor size: 1/2.7" Sensitivity: 0.6 V (lx s) Signal-to-noise ratio (SNR): ca. 39 dB Dynamic range: 69 dB Fix focus: 5 cm - 100 m Aperture: F/2.7 Frame rates: 30 fps @ 1920 x 1080, 1280 x 800, 1280 x 720, 1024 x 768, 840 x 480, 640 x 360, 640 x 480, 352 x 288 20 fps @ 848 x 480, 800 x 600 10 fps @ 1280 x 800, 1280 x 720, 1024 x 768 Dimensions (LxWxH): ca. 35.8 x 35.8 x 23.5 mm Cable length without connector: ca. 1.95 m System requirements Android 4.0 or above Linux Kernel 2.6 or above Mac OS 10.4.8 or above Windows 8.1/8.1-64/10/10-64/11 PC with UVC support Minimum CPU P4 1.4 GHz, 512 MB RAM Package content Camera Package Retail Box
