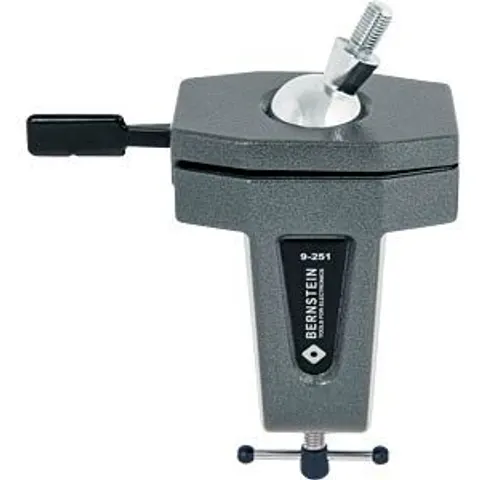

BERNSTEIN BERN 9 251 - Ball joint quick clamp, 40 mm Ø, grey

" A small lever pressure is sufficient for stepless clamping with high holding force. A quick clamp to optimally align cameras, monitors. Sensors or measuring devices optimally aligned. In woodworking, carving plates, carving balls or various clamping and holding tools are used. In instrument and model making, a wide variety of clamping and holding devices are screwed on. Suitable adapters and extensions of all types can be screwed on via the thread on the ball. An optimal hold to repair e-scooters, e-bikes and bicycles free-floating. Universities, research centers and laboratories have appreciated the versatile application and use options for years. Ball joint quick clamp for heavy parts 360° rotatable infinitely adjustable quality product 100% Made in Germany for clamping to the workbench (table thickness max 80mm) threaded pin M12 x 1,5 x 20 mm mounting surface approx Ø 20 mm inclination angle +/- 45 cast aluminum powder coated dark grey metallic Orientation dimensions approx 220 x 170 x 75 mm weight 940 g connection thread M12 x 1,5 mm maximum torque: ball-Ø 40 mm approx 24 Nm ball-Ø 60 mm approx 100 Nm Holding forces of the ball at the height of the threaded pin: ball-Ø 40 mm approx 45 kg (441N), ball-Ø 60 mm approx140 kg (1,372N) Included in delivery: Snorr washer and lock nut Lock nut for the thread "
