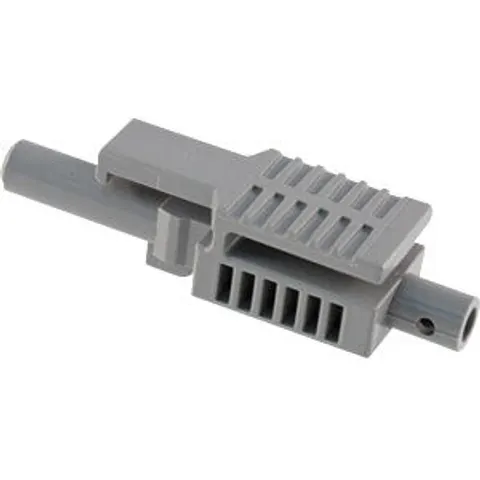

BROADCOM HFBR4503Z - FO connectors Simplex Latching with crimp ring, grey

Plastic Optical Fiber Accessories for Versatile Link HFBR4503Z Grey Simplex Latching Connector with Crimp Ring Description: The simplex latching connector is designed for rugged applications requiring a greater retention force — 80 Newtons ( 18 lb.) — than provided by a simplex nonlatching connector. When inserting the simplex latching connector into a module, the connector latch mechanism should be aligned with the top surface of the horizontal package, or with the tall vertical side of the vertical package or with top surface of tilted package. Misalignment of an inserted latching connector into either module will not result in a positive latch. The connector is released by depressing the rear section of the connector lever, and then pulling the connector assembly away from the module housing. The simplex latching connector is available in gray (HFBR- 4503Z) or blue (HFBR-4513Z). Features: • RoHS-Compliant • Compatible with Broadcom Versatile Link family of connectors and fiber optic components • 1 mm diameter Plastic Optical Fiber (POF) in two grades: low cost standard POF with 0.22 dB/m typical attenuation, or high performance extra low loss POF with 0.19 dB/m typical attenuation
