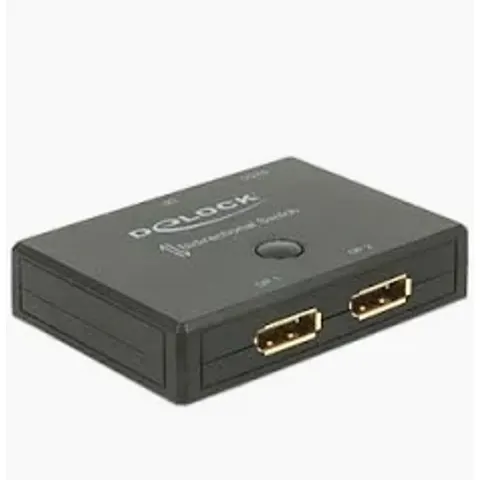

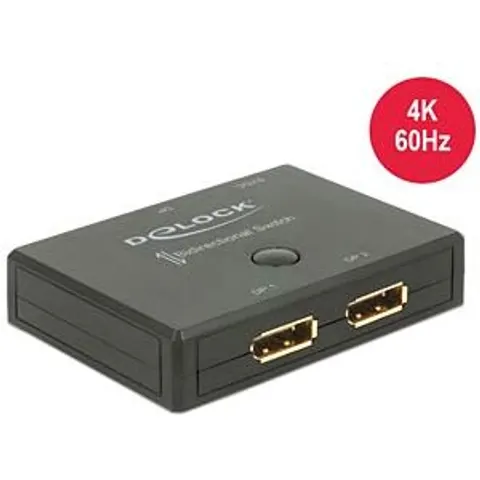

DELOCK 18750 - DP Switch bidirectional 4K 60 Hz

This DisplayPort switch by Delock is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications. 1. Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected. 2. An DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible. Note By using a 20 pin Displayport cable at the video source, the switch can be supplied with power. Specification • Connectors: Function 1 Input: 2 x DisplayPort 20 pin female 1 x 5 V DC jack 1.35 x 3.5 mm Output: 1 x DisplayPort 20 pin female Function 2 Input: 1 x DisplayPort 20 pin female 1 x 5 V DC jack 1.35 x 3.5 mm Output: 2 x DisplayPort 20 pin female • DisplayPort port selection by button • Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware) • Plastic housing • Colour: black • Dimensions (LxWxH): ca. 82 x 62 x 17 mm System requirements • A free DisplayPort female • DisplayPort cable Package content • Switch bidirectional • USB power cable, length: ca. 1 m • User manual Package • Retail Box
