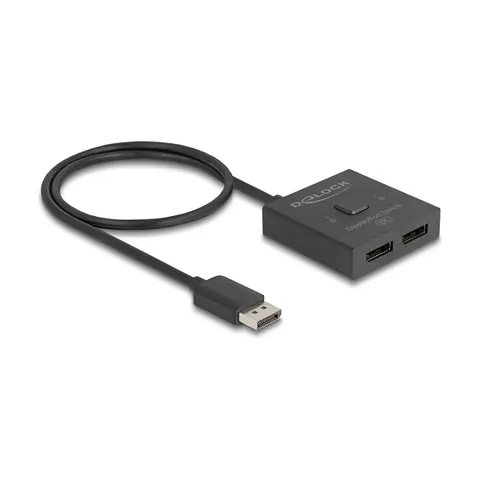

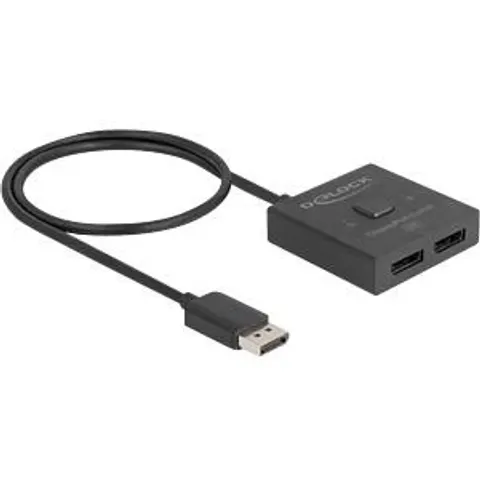

DELOCK 18906 - 2 Port Switch, DisplayPort

"This DisplayPort switch by DELOCK is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications. Function 1 Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected. Function 2 A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible. Note The switch can be powered via the DisplayPort connector. If a device does not support DisplayPort power, the switch can be powered via the USB-C™ connector. Specification Connectors: Function 1 Input: 2 x DisplayPort female Output: 1 x DisplayPort male Function 2 Input: 1 x DisplayPort male Output: 2 x DisplayPort female 1 x USB Type-C™ female (optional for power supply) 1 x button with LED indicator for 1 or 2 DisplayPort 1.4 specification Supports HDR Resolution up to: 7680 x 4320 @ 30 Hz 3840 x 2160 @ 144 Hz (depending on the system and the connected hardware) Plastic housing Colour: black Dimensions (LxWxH): ca. 55 x 55 x 15 mm Cable length without connectors: ca. 50 cm System requirements A free DisplayPort female port DisplayPort cable Package content Switch bidirectional User manual Package Retail Box "
