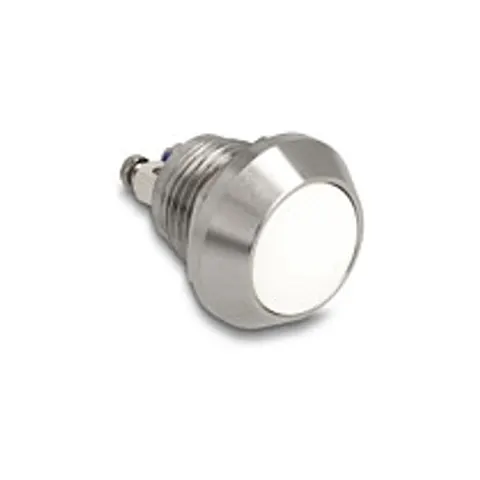

DELOCK 22035 - Push Button for Installation 12 mm 2 x Screw Terminal white

"This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways. Button A so called button, or push button, returns to its initial position after being pressed. Opener and closer The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them. Technical details Connectors: 2 x screw terminal Switch type: 1NO Switching voltage: AC 250 V~ / 3 A Number of contacts: 2 Number of open contact: 1 Function: momentary Actuator: domed Operating temperature: -25 °C ~ 55 °C Mounting hole diameter: ca. 12 mm Hexagon nut spanner width: 14 mm Mounting depth: ca. 15 mm Thread size: M12 Colour of push button: white Material: stainless steel nickel plated Mechanical life: 1,000,000 cycles Electrical service life: 100,000 cycles Protection class: IP65 Dimensions (LxD): ca. 22.0 x 17.5 mm Package content Push-button Package Zip poly bag "
