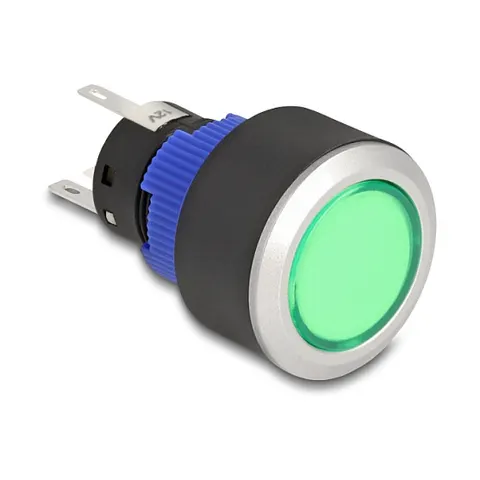

DELOCK 22048 - Push Button for Installation 22 mm 5 x solder connection actuato

"This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.A so called button, or push button, returns to its initial position after being pressed.The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them. Technical details Connectors: 5 x solder connection Switch type: 1NO + 1 NC Switching voltage: AC 230 V~ / 3 A Number of contacts: 5 Number of open contact: 3 Number of LED: 2 Function: momentary Actuator: flat Operating temperature: -25 °C ~ 55 °C Mounting hole diameter: ca. 22 mm Mounting depth: ca. 40 mm Thread size: M16 LED lighting: green LED voltage: 12 V Material: plastic Mechanical life: 1,000,000 cycles Electrical service life: 100,000 cycles Protection class: IP60 Dimensions (LxD): ca. 41 x 22 mm Package content Push-button Package Zip poly bag "
