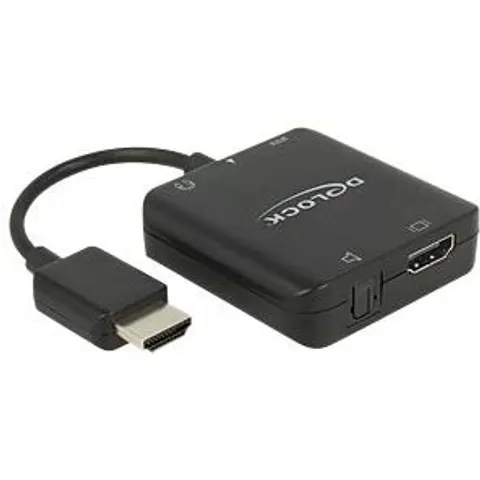

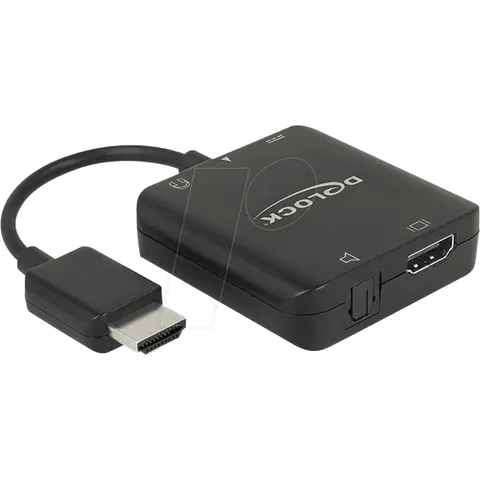

DELOCK 62784 - HDMI Audio Extractor 4K compact

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver. Specification • Connector: Input: 1 x HDMI-A 19 pin male 1 x USB Type Micro-B male (5 V power supply) Output: 1 x HDMI-A 19 pin female 1 x 3.5 mm 3 pin stereo jack female (audio) 1 x TOSLINK female S/PDIF • High Speed HDMI, 3D and HDCP 1.4 • Automatic switching to stereo (2.0) when using the stereo jack and automatic muting of the digital output • Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz (12 bit) • Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max. • Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio • Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on the system and the connected devices) • HDMI audio routed to the output (pass-through) • Power consumption: max. 2 W System requirements • A free HDMI-A female port • A free USB Type-A female port Package content • HDMI Audio Extractor • USB Type-A to Type Micro-B cable, length ca. 15 cm • User manual
