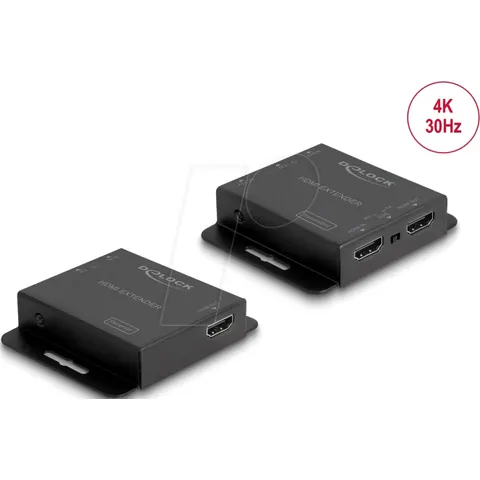

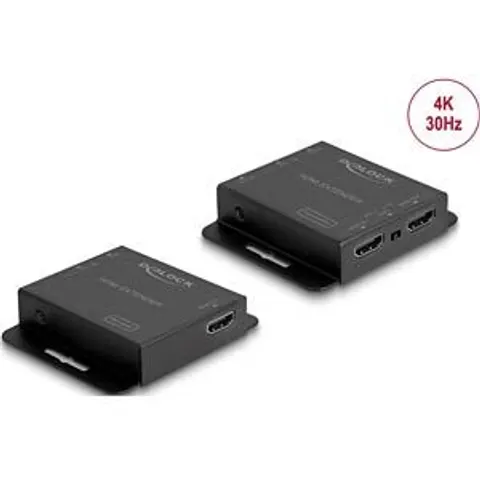

DELOCK 65832 - HDMI extender via Cat.6, set

"This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable . At 4K 30 Hz resolution, distances of up to 40 m are possible, and at 1080p resolution, 70 m can be achieved. The set has wide applications in conference rooms, for tele-education or on large screens. HDMI loop output The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor. Power over Cable (PoC) The set supports Power over Cable (PoC), so only the transmitter requires a power supply. The receiver is powered via the network cable and can therefore be used more flexible. Screwable DC connection The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection. Specification Connectors Transmitter: Input: 1 x HDMI-A female 1 x DC 12 V power connector screwable Output: 1 x RJ45 jack 1 x HDMI-A female 1 x 3.5 mm 3 pin stereo jack female (IR) Connectors Receiver: Input: 1 x RJ45 jack 1 x 3.5 mm 3 pin stereo jack female (IR) Output: 1 x HDMI-A female Transmission of audio and video signals Transmission of IR signals 30 - 60 kHz Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware) Supports EDID und HDCP Supports PoC (Power Over Cable) Power consumption: max. 3.0 W Metal housing Wall-mount option Colour: black Dimensions (LxWxH): ca. 80 x 69 x 17 mm System requirements HDMI cable One Cat.5e or Cat.6 network cable Package content HDMI transmitter HDMI receiver Infrared transmitter Infrared receiver Power supply User manual Power supply specification Wall power supply Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A Output: 12.0 V / 1.0 A / 12.0 W Ground outside, plus inside Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm Package Retail Box "
