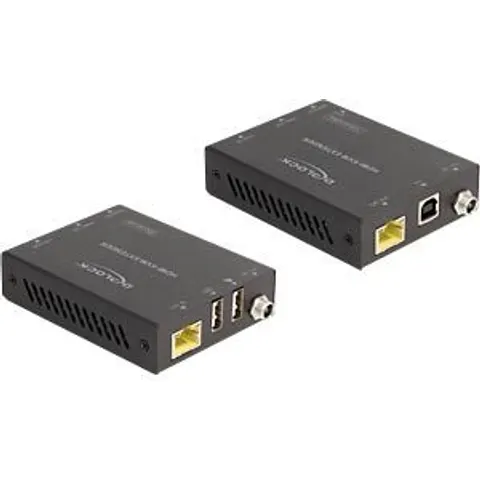

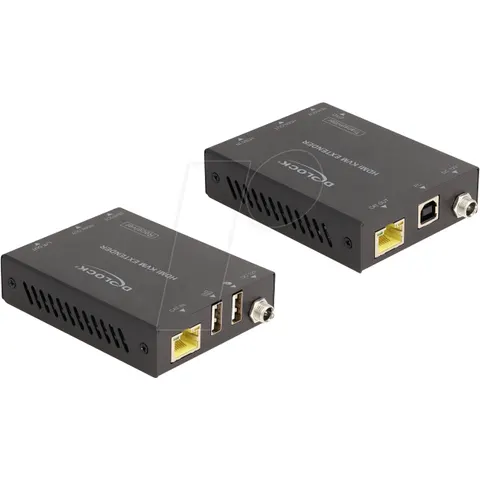

DELOCK 65957 - KVM Extender Set, HDMI, 70 m

"This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable . At 4K 60 Hz resolution, distances of up to 70 m are possible. The set has wide applications in conference rooms, for tele-education or on large screens. HDMI loop output The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor. KVM function A USB keyboard and mouse can be connected to the receiver in order to send the signals to a computer connected to the transmitter. Power over Cable (PoC) The set supports Power over Cable (PoC), so only one device requires a power supply. The other device is powered via the network cable and can therefore be used more flexible. Screwable DC connection The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection. Technical details Connectors Transmitter: Input: 1 x HDMI-A female 1 x DC 12 V power connector screwable 1 x USB 1.1 Type-B female Output: 1 x RJ45 jack 1 x HDMI-A female Connectors Receiver: Input: 1 x RJ45 jack 1 x DC 12 V power connector screwable Output: 1 x HDMI-A female 1 x 3.5 mm 3 pin stereo jack female (audio) 2 x USB 1.1 Type-A female Service port: USB Type Micro-B female Transmission of audio and video signals Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware) Supports EDID management HDCP and HDR support Supports 7.1 Surround Sound with Dolby TrueHD and DTS-HD Master Audio Supports PoC (Power Over Cable) Operating range up to 70 meter Power consumption: max. 4.2 W Metal housing Wall-mount option Colour: black Dimensions (LxWxH): ca. 90 x 68 x 22 mm System requirements HDMI cable One Cat.6 or Cat.6A network cable Package content HDMI transmitter HDMI receiver Wall mounting brackets Power supply User manual Power supply specification Wall
