DELOCK 86095 - Fiber optic patch panel, 6-port, SC Duplex, LC Quad, grey

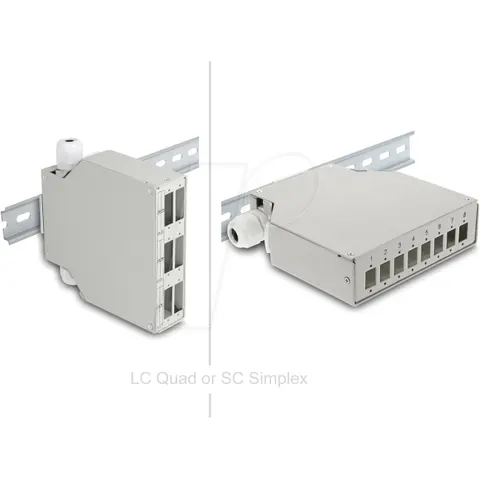

Fiber optic patch panel, 6-port, SC Duplex, LC Quad, grey This fiber optic patch panel by Delock is suitable for mounting on a 35 mm wide DIN rail and can accommodate up to 6 fiber optic couplers of the types SC Duplex or LC Quad. With alternative panel for 8 x SC Simplex or LC Duplex The fiber optic distribution box can be equipped with an alternative panel that offers space for up to 8 SC Simplex or LC Duplex couplers. This means that the box can be used with either a 6 or an 8 panel. PG cable glands for feeding through fiber optic cables The fiber optic cables can each be fed through two watertight PG11 cable glands. With splice cassette The integrated splice cassette enables the individual fibers to be laid cleanly for optimum transmission of fiber optic signals. The cassette is also perfect for mechanical splicing and fusion splicing. Flexible installation - can be used horizontally and vertically Thanks to its design, the clip is suitable for both horizontal and vertical mounting, which makes it particularly flexible in terms of installation. Technical data 6 slots for SC Duplex or LC Quad couplings Rectangular cut-out: 26.3 x 9.9 mm Mounting hole diameter: approx. 2.1 mm Hole spacing: approx. 30.6 mm Alternative panel for 8 x SC Simplex or LC Duplex couplings Rectangular cut-out: 13.2 x 9.9 mm Mounting hole diameter: approx. 1.8 mm Hole spacing: approx. 18.0 mm Top-hat rail mounting: 35 mm With splice cassette PG11 cable glands and sealing plugs Ambient temperature: -40 °C ~ 85 °C Housing color: grey Housing material: metal Dimensions (LxWxH): approx. 130 x 126 x 35 mm Package contents Fiber optic distribution box panel Packaging Box
