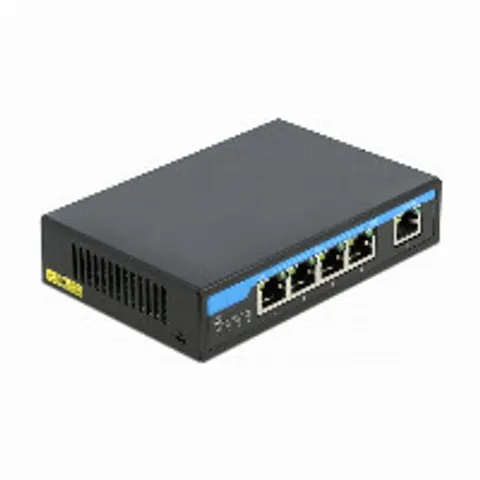

DELOCK 87764 - Switch, 5-Port, Gigabit Ethernet, PoE

"This Gigabit Ethernet Switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. An additional RJ45 uplink port without PoE function is available. Connectors: 4 x RJ45 jack PoE 1 x RJ45 jack 1 x DC 5.5 x 2.1 mm female Specifications Output power: max. 30 W per port, max. 60 W total Data transfer rate up to 1 Gbps LED indicator for power and PoE LED indicator for link and activity Supports IEEE 802.3at PoE+ Phantom power (Mode A, pairs 1/2 and 3/6) Metal housing Fanless Dimensions (LxWxH): ca. 130 x 87 x 28 mm System requirements Device with one free RJ45 port Package content PoE switch External power supply Power cord User manual Power supply specification Power supply with IEC C14 connector Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A Output: DC 48.0 V / 1.35 A Ground outside, plus inside Dimensions: inside: ø ca. 2.1 mm / outside: ø ca. 5.5 mm / length: ca. 9 mm "
