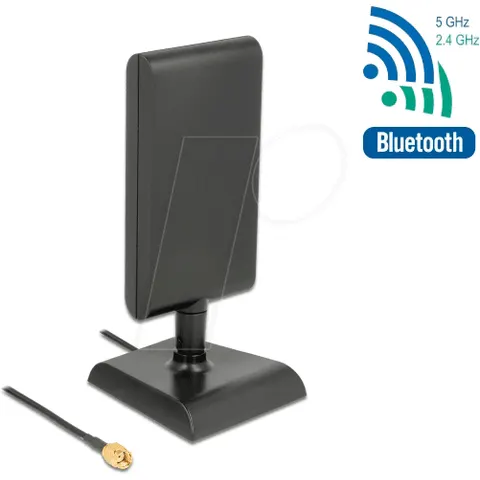

DELOCK 89590 - WLAN Antenna, RP-SMA

"This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals. Specification Connector: 1 x RP-SMA plug Frequency range: 2.400 - 2.500 GHz / 5.150 - 5.875 GHz Compatible to Bluetooth Antenna gain: 6 dBi @ 2.400 - 2.500 GHz / 9 dBi @ 5.150 - 5.875 GHz Impedance: 50 Ohm Polarisation: linear, vertical HBW horizontal beamwidth: 55° VBW vertical beamwidth: 24° VSWR: 2.5 Operating temperature: -10 °C ~ 55 °C Housing material: ABS Colour: black Antenna length including magnetic base: ca. 16.2 cm Features of the base: magnetic on the bottom / rubberized bottom / wall mountable Cable: coaxial Cable type: ULA 100 Cable colour: black Cable attenuation: 1.4 dB @ 2.5 GHz per meter Cable diameter: ca. 2.79 mm Cable length: ca. 1 m Dimensions: antenna (LxWxH): ca. 162 x 66 x 18 mm / base (LxWxH): ca. 80 x 77 x 15 mm System requirements Device with a free RP-SMA jack Package content WLAN antenna "
