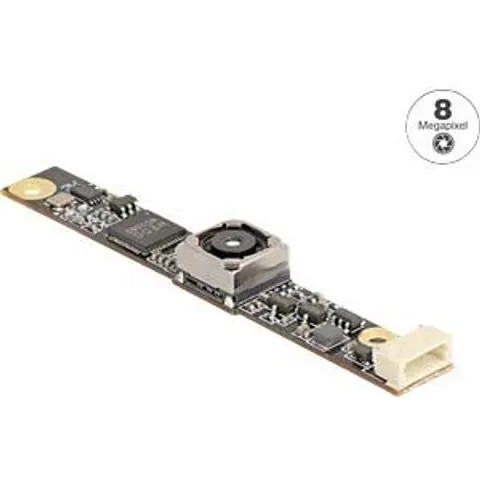

DELOCK 96360 - Camera module, USB2, 8 MP, Sony IMX179QQH5-C

"This USB 2.0 camera module by Delock offers high resolution and low power consumption in a very compact design. It is ideal for installation in industrial components such as IPCs, embedded systems, sensors and in device construction. The use of a light-sensitive sensor with backside illumination (BSI) extends the application range of this module. Note The autofocus of this camera module can be deactivated and set individually. System requirements Android 11.0 or higher Chrome OS Linux Kernel 5.15 or higher Mac OS 12.4 or higher Windows 10/10-64/11 Scope of delivery Camera module CD with operating instructions Frame rates 320 x 240 @ 30 Hz 352 x 288 @ 30 Hz 640 x 480 @ 30 Hz 900 x 600 @ 30 Hz 1280 x 720 @ 30 Hz 1600 x 1200 @ 30 Hz 1920 x 1080 @ 30 Hz 2048 x 1536 @ 20 Hz 2560 x 1440 @ 30 Hz 2592 x 1944 @ 20 Hz 3264 x 1836 @ 15 Hz 3264 x 2448 @ 15 Hz Technical features Connection: 1 x 5 pin USB 2.0 post socket SMT, pitch 1.00 mm Resolution: 8.0 megapixel With optical IR filter Current consumption: Sensor active: 110 mA ± 5 mA @ 640 x 480 pixels Operating voltage: 5 V DC Operating temperature: 5 °C ~ 50 °C Operating humidity: 20 ~ 80 % Sensor size: 1/3.2"" Sensitivity: 0.6 V / lx s Signal-to-noise ratio (SNR): approx. 36 dB Dynamic range: 68 dB Autofocus: 0.2 m - infinity Aperture value: F/2.8 "
