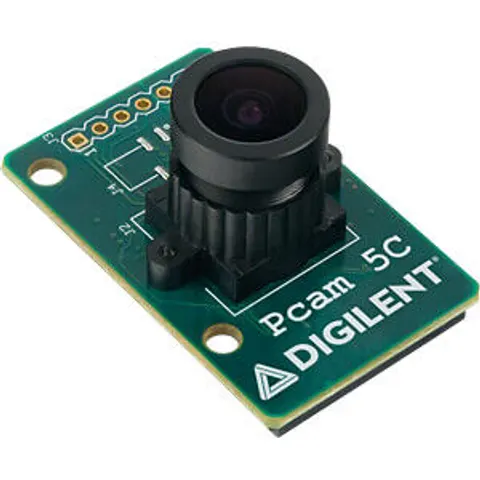

DIGILENT DIGIL 410-358 - Pcam 5C: 5 MP colour camera module with fixed focus

Pcam 5C: 5 MP colour camera module with fixed focus Description: The Pcam 5C is an imaging module for use with FPGA development boards. The module is designed around the 5 megapixel (MP) color image sensor Omnivision OV5640. This sensor contains various internal processing functions that can improve image quality, including automatic white balance, automatic black level calibration and controls for adjusting saturation, hue, gamma and sharpness. Data is transferred via a dual-lane MIPI CSI-2 interface, which provides sufficient data bandwidth to support common video streaming formats such as 1080p (at 30 frames per second) and 720p (at 60 frames per second). The module is connected to the FPGA development board via a 15-pin ribbon cable (FFC) that is pin-compatible with the connector located on the popular Raspberry Pi development board. The Pcam 5C comes with a 10 cm long, flat flexible cable and a factory installed fixed focus lens with M12 lens mount, so it is ready for immediate use. Note: Important information on software support can be found in the Software Support section of the Pcam 5C reference manual. Features: • 5MP Color System on Chip Image Sensor • 15-pin FFC connector for image data • Double track MIPI CSI 2 image sensor interface • Supports QSXGA@15Hz, 1080p@30Hz, 720p@60Hz, VGA@90Hz and QVGA@120Hz • Output formats include RAW10, RGB565, CCIR656, YUV422/420, YCbCr422 and JPEG compression*. • Standard M12 lens mount for lens interchangeability • with 10 cm cable and factory installed fixed focus lens • Small PCB size for flexible designs (4.0 cm x 2.5 cm) • 1×7 straight 100 mm header for access to additional camera signals • Works with Pcam compatible Digilent development boards What's included: • Pcam 5C • Ribbon cable 10 cm • Factory installed fixed focus lens • Custom Digilent packaging
