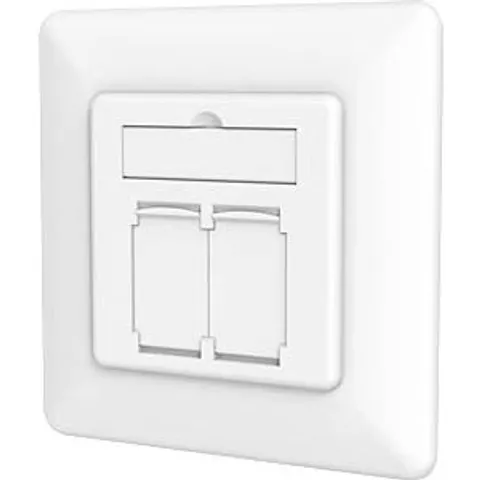

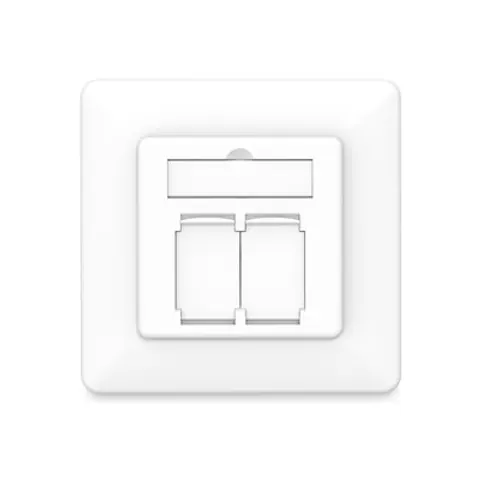

DIGITUS DIGI DN-9010-8-2 - Cat.6a junction box, class EA, shielded

" Cat.6a Class EA Network Outlet, Design-Compatible, Shielded, Flush Mount Future-oriented standards and high-end quality for your network. Design compatible to common switch ranges Easy installation via color coded IDC strips Central plate with integrated dust covers Integrated strain relief for installation cable The Cat.6a network outlets from DIGITUS® are design compatible with common switch programmes. It is certificated to Cat.6a ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and contains 1 shielded RJ45 socket. The cable installation takes place via IDC strips, color coded acc. EIA/TIA 568 A & B. The flush mount junction box is ideal for connecting your installation cables cleanly and neatly. The box is rounded off by the integrated field of view, with which you can optimally mark the junction box with a label insert. Technical details Transmission property: Category 6A Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for installation in trunking, surface and flush mount 2x RJ45 female, 8P8C Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B Integrated strain relief for installation cables Complete shielding of RJ45 sockets and IDC strips due to zinc die-cast housing Strain relief 40°-angled female for patch cord Central plate: 50 x 50 mm Frame: 80 x 80 mm Central plate with integrated dust covers Design compatible to common switch ranges Technical properties: Housing material: Die-cast metal RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze IDC termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycl
