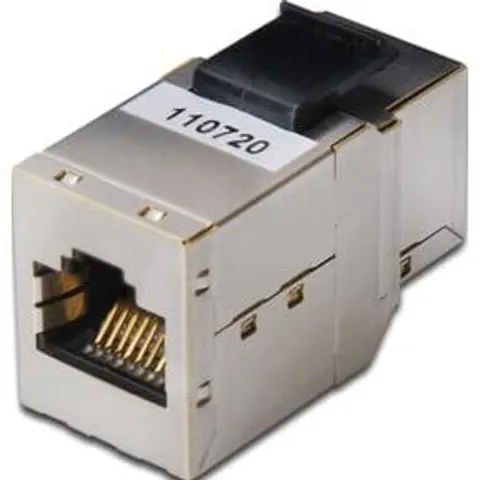

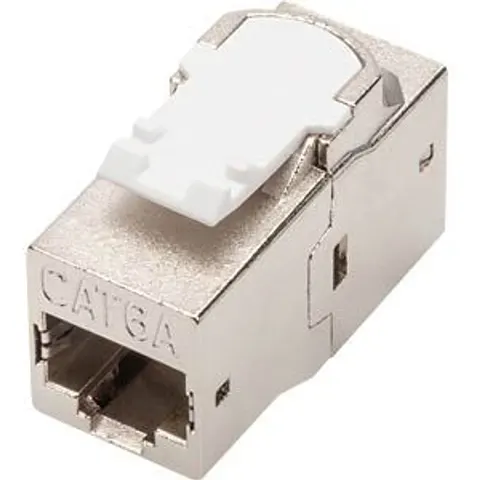

DIGITUS DIGI DN-93906 - Cat.6a Class EA Modular Coupler, shielded

" Cat.6a Class EA Modular Coupler, shielded The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels. Technical details Transmission properties: Category 6A, Class EA Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for 483 mm (19"") cabinet mounting 2x RJ45 Female, 8P8C 360° shield coverage Connection 1:1 Technical properties: Housing material: Zinc die-cast, nickel-plated RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 - 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) "
