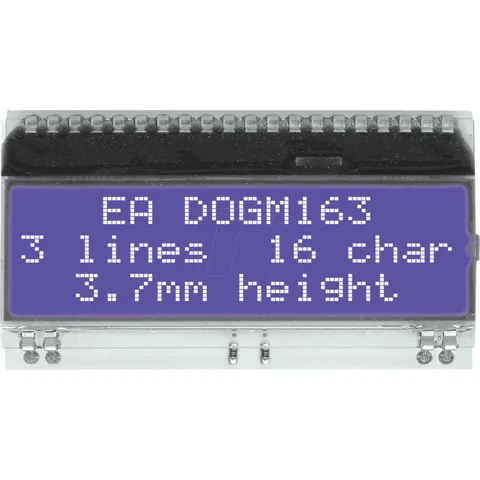

DISPLAY VISIONS EA DOGM163B-A - LCD text module, 48.3 x 12 mm, blue

3.3-V DOG module series Blue background This new display series has been specifically designed for low-power handheld applications. For the first time, it is possible to operate a standard display directly at 3.3 V! It goes without saying that 5-V operation is also possible. In addition, the optional LED lights run on 3.3 V or 5 V, depending on the circuit. Compact design at 55 x 31 mm with standard font size of 5.57 mm (2 x 16) Non-illuminated, flat at 2.0 mm and 5.8 mm with lights Direct soldering into printed circuit board, with no additional installation work required 4-bit, 8-bit and SPI interface 3.3 V or 5 V, also LED lighting Many different designs can be created from one unit Top. -20 - +70°C integr. temperature compensation 3 x 16 characters, font height 3.60 mm
