DISPLAY VISIONS "EA QUICKUNITFT10 - Starter kit multi TFT display 10.1"" inch, PCAP touch"

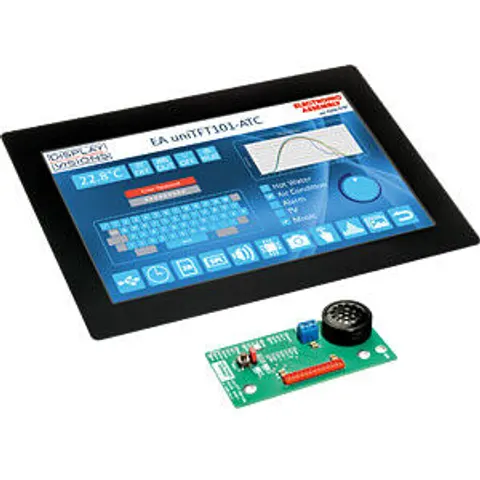

"Starter pack with 1x multifunction control unit TFT 10.1"" (EA uniTFT101-ATC), intelligent TFT 1280 x 800 pixels, with white LED illumination (external dimensions: 235 x 161 mm). Incl. PCAP touch panel (outer dimensions: 260 x 185 mm), starter board (loudspeaker, reset, interface breakout, power supply), layout software for Windows, cable. Properties: Super bright with 1000cd/m² Object-oriented screen layout Change objects at runtime: Size, shape, colour, content Animate and move objects Vector graphics, lossless zooming and rotating alpha blending Character Sets, Vectorized ASCII and Unicode Single supply 3.3 V 7 serial interfaces: USB, 2 x RS232, 2 x SPI, 2 x I²C 16 digital freely definable I/O built in, expandable to 125 4 analog inputs Time, battery buffered Micro SD card as data memory for images, fonts, menus and log files internal calculation functions and programmability PLAYFULLY JUGGLING WITH OBJECTS TFT displays have become indispensable in industrial and medical technology as well as in the private sector. They simplify operation and automatically upgrade the device. Small and large applications also benefit optically from the use of a Colour displays. An attractive screen layout is important - what counts are clarity and modern design. This is where the new concept of the new uniTFT displays from ELECTRONIC ASSEMBLY comes in. You create surfaces like on a tablet or smartphone. A number of graphically appealing objects are available for this purpose, which can be adapted to individual requirements with the simplest of means. With the graphical editor you can easily create screen pages by drag-and-drop operation. The properties of the individual objects can be edited at any time and actions (e.g. for touch keys) can be created. A gentle appearance or lateral infiltration of objects creates an intuitive feeling of closeness and ease of operation for the user. USB AND OTHER INTERFACES The new EA uniTFT provides various interfaces to the outside world. A US
