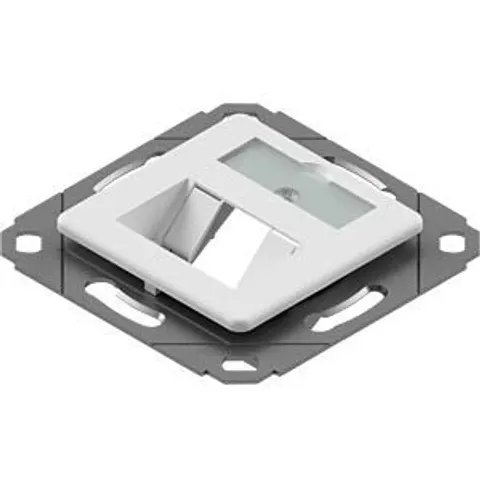

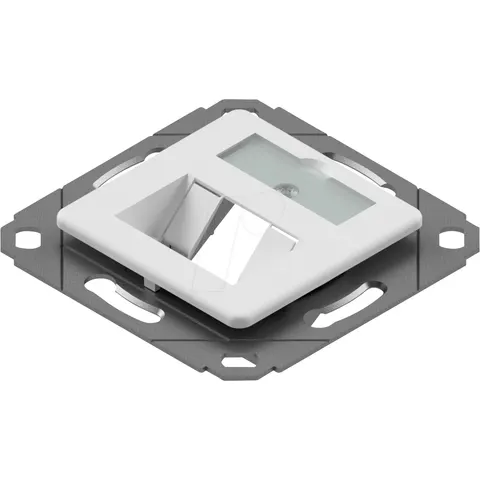

EASYLAN CKVD1D2 - Keystone module holder, preLink / fixLink, 1 port, RAL 9010

EasyLan® preLink® / fixLink® design-capable module holder SL, with central plate, angled outlet, single, white, RAL9010 • Data socket 1gang, design-capable with 50x50 central plate for 1 Keystone module, e.g. RJ45 • With the central plate, the data socket is compatible with the 50x50 DIN switch programmes (frame/intermediate frame provided by the customer from the DIN switch programme). • Compatibility with the common German switch programme manufacturers is guaranteed • Installation options for: • BK trunking, flush-mounted / surface-mounted using surface-mounted cup / in floor tank cup by adapting to the support ring • Support ring: can be designed, suitable for UAE covers, zinc die-cast • Central plate: DIN 50mm x 50mm plastic, white similar to RAL 9010 • RoHS: conforms to 2002/95/EC • Earth connection: flat connector, cable lug • Module installation: 1 Keystone module, e.g. RJ45 • Cable outlet 45 degrees • Cover frame: none, to be provided by the customer
