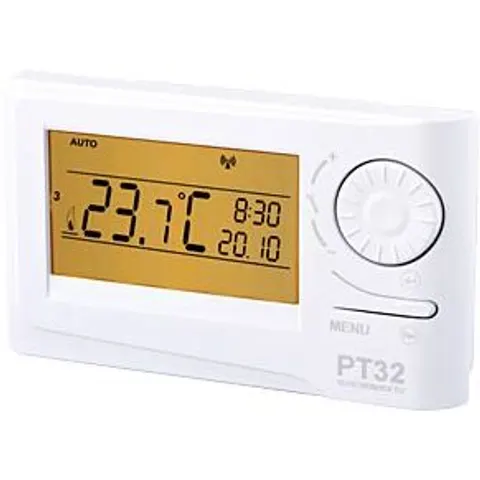

ELEKTROBOCK EB PT32 - Room thermostat, programmable

"PT32 is a room thermostat with orange background lighting for the intelligent control of the heating systems. The weekly program, which allows for up to six temperature changes per day, meets even the most demanding temperature control requirements. Suitable for all boilers requiring the potential-free (voltage-free) switching contacts (e.g. gas boilers, electric boilers, circulation pumps, thermoelectric drives or air conditioning units). 9 Weekly Programs 6 temperature changes per day possible Programming after 10 minutes and 0.5 °C. Possibility of programming according to days or Mon-Fri, Sat-Sun and Mo-so Large, clear display with backlight Intuitive navigation in the selected language (CZ/PL/EN/EN/RU/SVK) Possibility of selecting the PWM control or hysteresis Optimal start function - activates the heat generator to reach the set temperature at the desired time Short-term change of program temperature possible MANU operating modules Permanent shutdown (OFF) Holiday operating modules Possibility of choosing the even and odd week Correction of the current temperature possible Keyboard lock Hour Meter Automatic display of boiler maintenance Frost protection (3°C) Automatic time change from summer to winter time Low battery indicator Output (potential-free contact) max. 5 a/250 V AC The room thermostat BPT32 has the possibility of remote control via GSM network. (GST1 or GST2 modules) TECHNICAL PARAMETERS Supply 2 x 1.5 V alkal. R6/AA Number of adjustable temperatures 6 per day Hysteresis 0.1°C to 1.5°C. Relay On Element Minimum programmable time 10 min. Range of adjustable temperatures +5°C to +39°C. Temperature setting after 0.5°C. Minimum display jump 0.1°C. Measurement accuracy ±0.5°C. Protection class IP20 Battery life heating period Output max. 5 A. Working temperature 0°C to +40°C."
