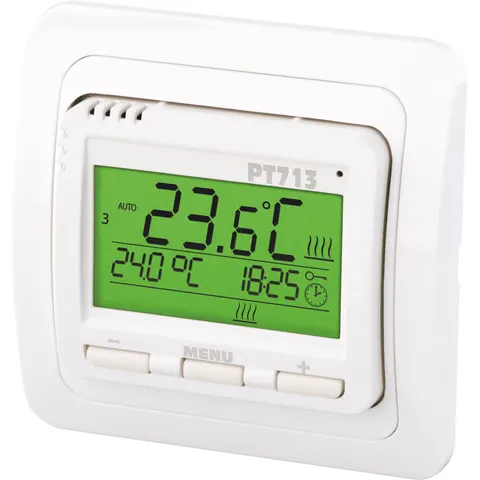

ELEKTROBOCK EB PT713 - Thermostat for floor heating

"PT713 is a digital thermostat with a room sensor, specially designed for floor heating (heating cable, mats, foil). Allows control after room temperature. These thermostats can be extended by an external sensor (CT04-10K). Benefits PT713: 9 weekly programs with 6 temperature changes per day Backlit display Selection of the PI control or hysteresis Sets the minimum time for switching on the heat source Optimal start (set temperature will reach the set time) OPERATING MODULES: AUTO/MANU/OFF/HOLIDAY/SUMMER Sets the maximum limit value for the floor temperature Setting of the minimum limit value for the floor temperature with the possibility to determine a time period in which the temperature is to be kept Even/odd week choice ""Window open"" function (automatic lowering mode in case of sudden temperature drop) Rapid change in the required temperature Information of operating hours Function TEST to check the correct connection Child Safety Lock - Key Lock Power reserve more than 100 hours in the event of a power failure Easy installation - System PLUG-IN TECHNICAL PARAMETERS Supply 230 V/ 50 Hz Number of adjustable temperatures 6 per day Hysteresis 0.1°C to 5°C. Minimum programming time 10 min. Adjustable temperature range +3°C to +99,5°C. Temperature setting after 0.5°C. Minimum display 0.1°C. Measurement accuracy ±0.5°C. Power reserve in case of power failure (NiMH) more than 100 hours Protection class IP20 Output (potential-free contacts) max. 12 a, 2760 W. Working temperature 0°C to +40°C."
