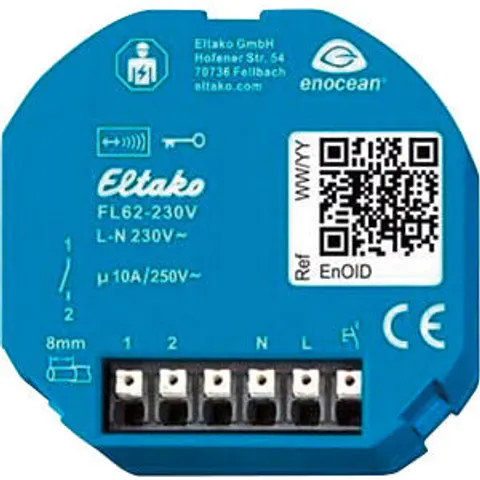

ELTAKO FL62-230V - Light actuator

" Wireless light actuator 10 A/250 V AC Impulse switch with 1 NO contact, potential free. 230 V incandescent and halogen lamps 1000 W ESL and 230 V LED lamps up to 200 W stand-by loss only 0.4 watt For recessed mounting 49 x 51 mm, 20 mm deep The connecting terminals are plug-in terminals for conductor cross sections from 0.2 mm² to 2.5 mm². With the comfortable inching technology, up to 32 radio universal pushbuttons, radio direction switches, radio central control pushbuttons and motion sensors can be taught-in. Bidirectional radio can be activated. Distance control connection/contact 6 mm. Local supply, switching and control voltage 230 V. If the supply voltage fails, the switching position is maintained. When the supply voltage returns, the machine is switched off in a defined manner. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230 V control button that may have been mounted in front of it. A glow lamp current is not permitted."
