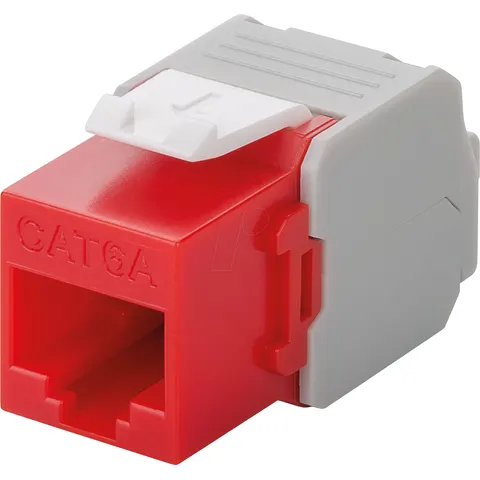

GOOBAY 90689 - Keystone module Cat.6a UTP, RJ45 jack / LSA, red

" Keystone module with RJ45 socket for easy connection of a Cat.6A UTP cable in red With the Keystone system there are no limits to the installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 sockets (Cat.5, Cat.6, Cat.6A), loudspeaker connectors (cinch sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI sockets. The individual Keystone modules are universally applicable and interchangeable. Technical data : LAN socket with robust plastic housing for optimum transmission of electrical or optical signals. CAT-6A built-in socket for network cables with an outer diameter of 5.0 - 9.0 mm With secure crocodile lock Terminal strip for tool-free LSA mounting No LSA installation tool is required for mounting Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at RJ45 socket for installation in keystone patch panels, network sockets and housings Used, for example, in laboratories and workshops, in home entertainment and in network installations Field-terminable RJ45 jack for rigid conductors from 0.48 - 0.65 mm (AWG 22 - 26) RJ45 connections are TIA 568A/B colour-coded "
