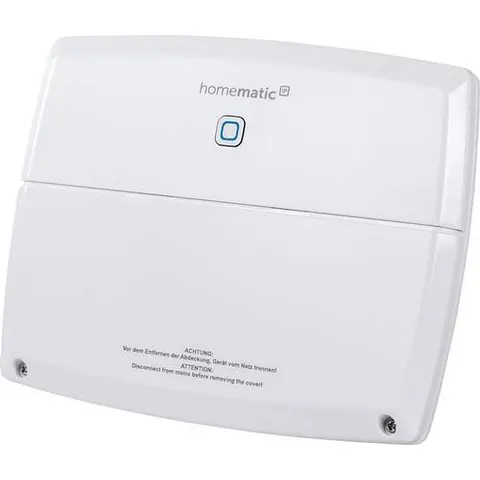

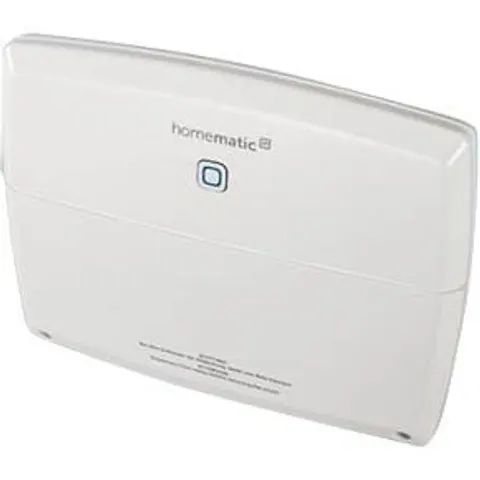

HMIP MIOB - HomeMatic IP multi IO box

"Separate control unit for switching boilers and circulation pumps Can be used with up to four underfloor heating actuators, even without the Homematic IP Access Point or Homematic CCU2 central control unit Possible to switch between winter/summer operation, i.e. heating/cooling by configuring a corresponding switching output or input Humidity limiter input provides reliable prevention of mould formation caused by condensation on the lines when cooling mode is running Temperature limiter input to protect flooring 0 to 10-V output, e.g. for activating controlled living space ventilation Simple installation with screws or on rail mounting (optional HmIP-DRA rail mounting adapter available: item no. 150123A2A) Set of inputs/outputs with flexible programming options for underfloor heating systems or more generally as part of a smart home Can be used with the Access Point in conjunction with the Homematic IP app, the Homematic CCU2 central control unit, or with many different partner solutions Supply voltage 230 V/50 Hz Power consumption max. 16 A Stand-by power consumption 250 mW Max. switching power for output 1 3680 W, cosf=0.95 (potential-free) output 2 1840 W, cosf=0.95 (potential-free) inputs 2x digital inputs (potential-free), 1x analogue output (0–10 V) cable type and cross-section Rigid and flexible cable, 0.75–2.5 mm² Load type: ohmic load Changeover relay, 1-pin, µ NO contact, 1-pin, µ contact Protection class: IP20 Ambient temperature: 0 to 50°C Dimensions (W x H x D) 199 x 156 x 34 mm Weight 365 g Radio frequency: 868.3 MHz/869.525 MHz Typical Wireless free field range 380 m"
