INTER-TECH IT88885377 - Carrier card for 2x M2 SATA HDD/SSD

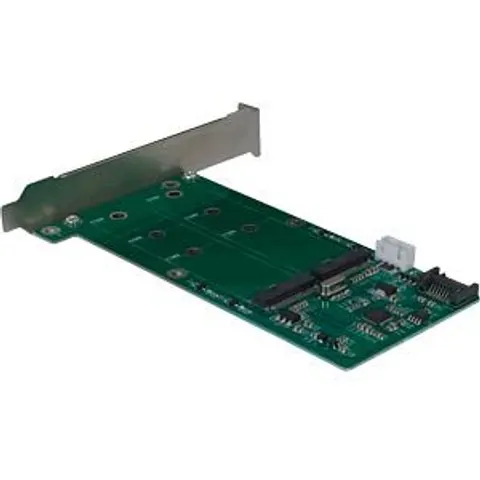

" Carrier card for two M.2 S-ATA hard disks. The KT022A carrier card offers the possibility to install two M.2 S-ATA SSDs (each width 22mm / length 42, 60 or 80mm) in a normal PC housing. Thanks to an expander chip on the board, you only need one free S-ATA port for both SSDs. Simply mount the SSDs on the board and then attach the card to an empty slot. Now all you need to do is connect the board to the periphery of the computer using a data and power cable. Mounting screws and a small screwdriver are included with the card. Expander chip (only one S-ATA connector is required) Low-profile mounting plate included S-ATA III STANDARD Fast Data Transfer General Data: Connections: 2x M.2 S-ATA, 1x 7pin plugs (S-ATA III) + 4Pin plugs (current) S-ATA expander chipset: JMB572 (for connection to S-ATA II controller or higher. Controller must support S-ATA expander) Disk capacity: Depends on the S-ATA controller Max. Data transfer rate: 6Gbit/sec. Supported M.2 formats: Art 2242, 2260, 2280 (key B) Supported operating systems: Windows XP/Vista/7/8/8.1/10, Linux from kernel 2.4, MAC OS from 10.4 Plug & Play: Yes Material: Metal and hard paper Dimensions (H/W/D): 20 x 120 x 150mm Includes: ARGUS KT022A Retail Packaging Additional Low-Profile Slot Plate Screwdriver Set Of Screws Power adapter 4Pin to Molex Operating instructions (German) "
