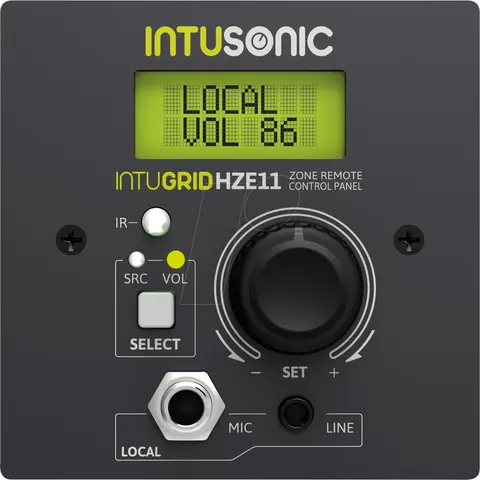

INTU 12604189 - INTUSONIC HZE11 zone remote control panel

" Flush mounting Cascading possible Can be controlled via IR remote control LCD display Built-in volume controller, RS485, including IR remote control The INTUGRID HZE11 is a flush-mounted control unit for Intusonic's RS-485-enabled audio control systems and is the perfect addition to the HMA7x series of audio routers thanks to its type of user interface. It fits in wall box sizes with minimum depth (86 mm), meaning it can be mounted exactly where it is needed - in the room to be controlled. A standard CAT network cable is sufficient for connection, no additional power supply is required. The option of cascading allows multiple devices to be installed in one room, with the last operated device performing system settings and reproducing these settings on all HZE11 panels and the connected main unit. A local audio feed is possible via the integrated 3.5-mm jack for a stereo signal, or alternatively via a 6.3-mm jack for a mono microphone."
