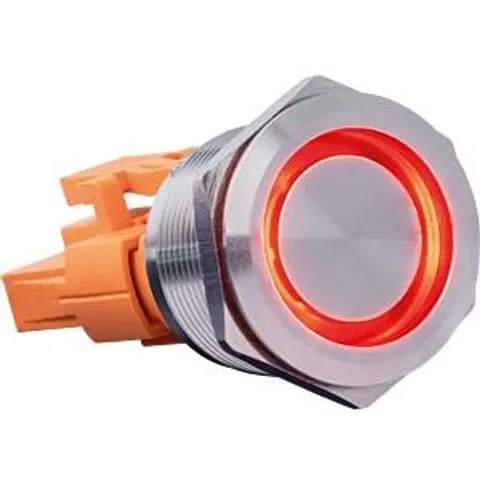

JOY-IT BUTTON 22B-M-RD - Steel pushbutton, groping, Ø25, 7 A, red

This latching steel pushbutton convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact) and PA66 (flame). The protection classes, wide temperature range and durability make this steel pushbutton suitable for many applications. It has a bright LED ring (red). Due to the concave design of the surface, there are no sharp edges. The connecting cables and the sockets have different colors and shapes to avoid confusion between the pushbutton variants (22A/22B/22C). Specifications • operating mode: groping • button depth: 3.1 mm • switching current: 7 A • rated load: 7 A at 250 V resistive, 2 A at 250 V inductive • LED voltage: 3 - 8 V DC • LED lifetime: 40,000 hours • connections: 2 x NO, 2 x NC, 2 x LED • insulation resistance: = 1000 MOhm • breakdown voltage: min. 1000 VAC • contact resistance: = 50 mOhm • core and outer material: stainless steel • connector material: flame retardant PA66 • contact material: silver • pin material: H65 gold plated • degree of protection: IP67, IK10 • torque nut: 5 - 14 Nm • dimensions mounting hole: diameter 22.2 x =12 mm. • dimensions: Diameter 25 x 40,4 mm Scope of supply • pushbutton • bushing • sealing ring • nut • 5 x 150 mm cable
