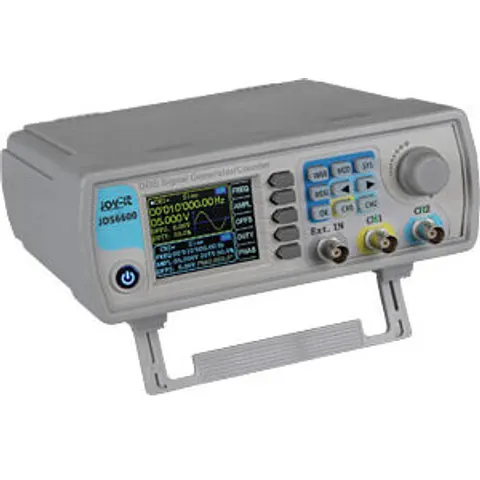

JOY-IT JDS6600 - JDS6600 function generator, 60 MHz

"The JDS6600 is a two-channel signal generator that generates signals of up to 60 MHz. It can be used in all areas of measurement engineering as it generates a variety of waveforms, such as sine, square, triangular, pulse, half-wave and many others. It also includes an integrated single-channel frequency counter. With a frequency accuracy of +/-20 ppm and a stability of +/-1 ppm/3 hours, this device offers excellent signal quality and high levels of flexibility. The large 2.4"" TFT colour display also ensures excellent user-friendliness, meaning that a wide range of applications are possible. Two-channel signal generator Signal forms: sine, square, triangular, pulse, half-wave, noise, Lorentz pulse, exponential rise/fall, CMOS and others Single-channel frequency counter Technical data: Frequency range (sine): 0 - 60 MHz Frequency range (square/triangular): 0 - 15 MHz Frequency range (PWM, CMOS, TTL, arbitrary): 0 - 6 MHz Min. frequency resolution: 0.01 µHz Frequency accuracy: +/-20 ppm Frequency stability: +/-1 ppm/3 hours Display mode: TFT LCD colour screen Screen size: 2.4"" Operating temperature: 0 - 40°C Operating humidity: Dimensions: 194 x 178 x 69 mm Included in delivery: Signal generator 2x BNC signal clips Power supply unit"
