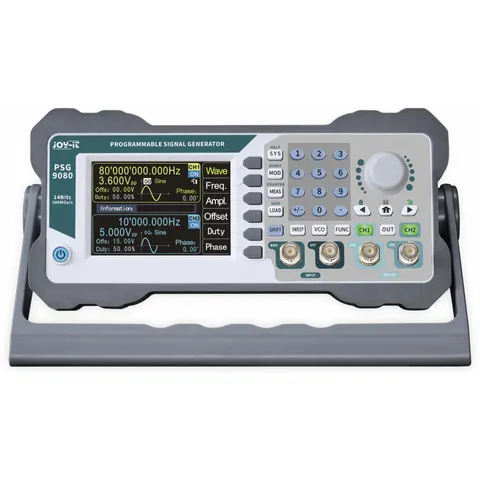

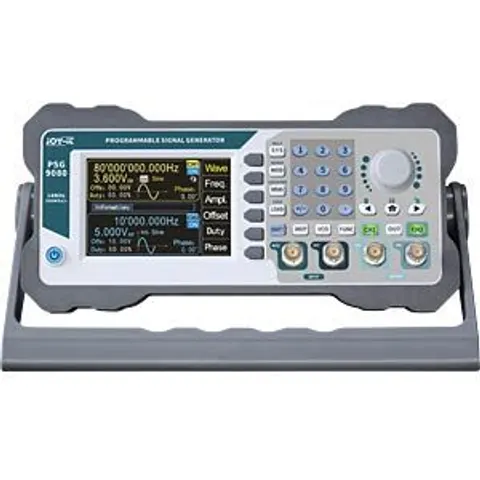

JOY-IT PSG9080 - Function generator PSG9080, 80 MHz

"The PSG9080 programmable signal generator can generate many different waveforms such as sine, square, triangle, pulse and user-defined waves. The signal generator has a generous frequency range from 1 nHz to 80 MHz and a sampling rate of 300 MSa/s. The housing is of high quality and offers non-slip feet for comfortable working. Different signal modulation methods, such as frequency modulation, phase modulation, amplitude modulation, pulse width modulation, frequency shift keying, are no longer a challenge with this device. The integrated measurement function also allows the frequency, period and duty cycle of external signals to be measured and displayed on the screen in real time. The signal generator is very easy to operate with its intuitive button layout and high-resolution 3.5-inch color LCD. Different settings can be saved in groups and thus recalled very quickly. In addition, the menu can be displayed in German, English and French. Display: 3.5"" color LC display 2 channel signal generator 1 channel frequency counter Modulation functions: AM, FM, PM, ASK, FSK, PSK, PWM, Burst Sampling rate: 300 MSa/s Vertical wave resolution: 14 bit Sweep function VCO function Frequency ranges: Sine: 1 nHz - 80 MHz Square, pulse: 1 nHz - 80 MHz Triangle, arbitrary: 1 nHz - 50 MHz TTL: 1 nHz - 20 MHz "
