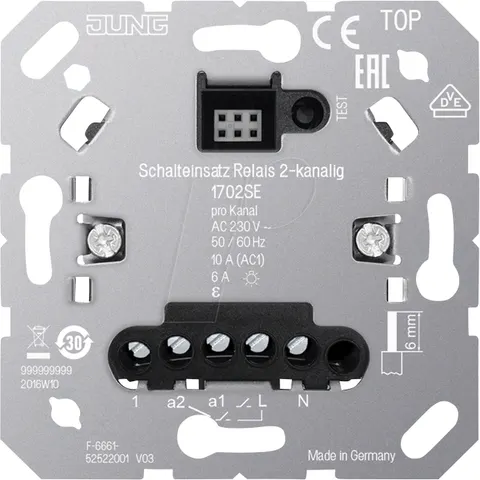

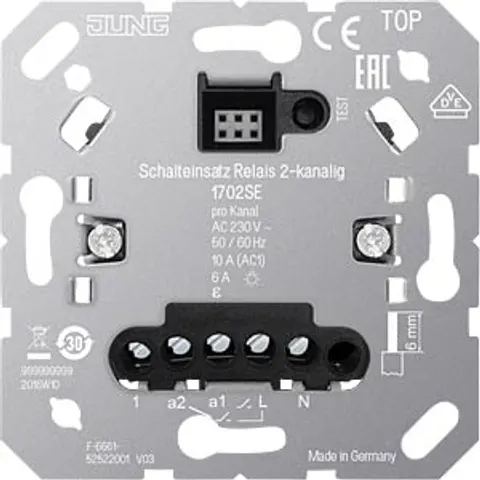

JUNG JG 1702SE - Switching insert relay, 2-channel

" Switch panel relay, dual channel with extension input Intended use For switching lights and motors Operated using the appropriate attachment Mounting in an appliance socket with dimensions according to DIN 49073 Product features It is possible to connect extensions. Test mode to test the function In combination with LB-Management dual pushbuttons: Two independent outputs Time function can be set for output a2 In combination with LB-Management single pushbuttons, LB-Management timer display, LB-Management motion detector: Output a2 switches in relation to output a1, e.g., to switch on ventilation in relation to the lighting and to switch it off with a delay. Switch-on delay can be set for output a2 Switch-off delay can be set for output a2 In combination with 3-wire extension and LB management dual pushbuttons: Two independent outputs In combination with 2-wire extension, rotary extension or pushbutton: Output a2 switches in relation to output a1, e.g., to switch on ventilation in relation to the lighting and to switch it off with a delay "
