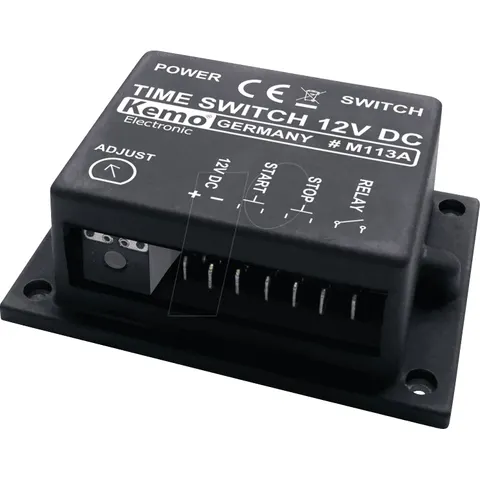

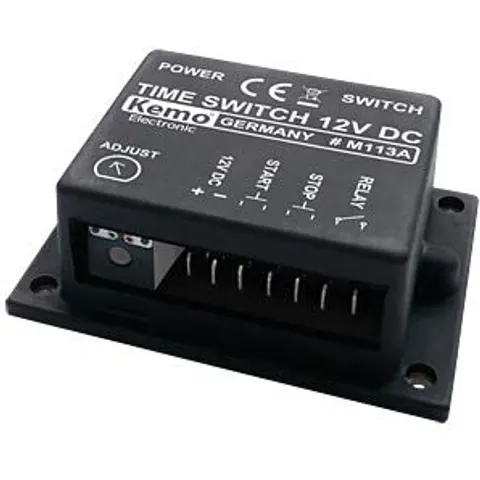

KEMO M 113A - Time switch, 12 - 15 V/DC

"Approximately 2 sec to 23 min timer. (± 30%) Switches with the built-in relay contact 1 x ON (max. 3 A) other devices on with push of a button and automatically off again after the pre-set time. With a push of the second button, the sequence can be stopped at any time. 2 buttons are also required for operation. Technical data Operating voltage 12 - 15 V/DC Power consumption approx. 20 mA/80 mA (relay on/off) Adjustable time approx. 2 sec to 23 min (±30%) Connection via flat connector on the module Display 2 (1 x LED operating voltage, 1 x LED relay ""ON"") Relay contact 1 x ON 3 A max. max 25 V (the built-in relay contact can also switch up to 230 V/AC, but then VDE-safety regulations must be observed e.g. finger protection, etc.) Dimensions approx. 87 x 60 x 33 mm (with fastening base)"
