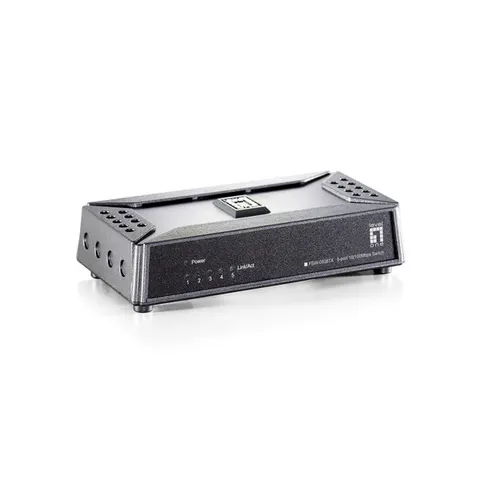

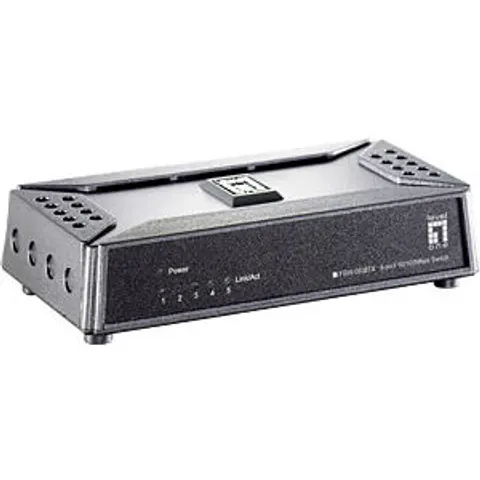

LEVELONE FSW0508 - LevelOne 5-port Mini Fast Ethernet Switch
- Price €20.57 at 1 shop
Variant: FSW0508 - 5-port Mini
-
FSW0508 - 5-port Mini €20.57 -
8-Port €24.70 -
FEP0631 - 6-Port PoE+ €60.88 -
FEU0511 - 5-Port SC Multimode €87.85
We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Offer
Sorted by total price including delivery-
€20.57 Total €30.52Go to shop: REICHELT IE
Prices include VAT, last checked 18 October at 12:17. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history
- Now
- €20.57
- Lowest
- €20.57
- Average
- €20.57
- Highest
- €20.57
Product details
| Brand | LevelOne |
|---|---|
| Category | Networking & Wi-Fi |
| Barcode (EAN) | 4015867109533 |
| Shops compared | 1 |
| Total | Lowest total price including delivery: €30.52 |
| On Pricuro since | 3 October 2026 |
Management features
1
| Switch type | Unmanaged |
|---|
Ports & interfaces
3
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
7
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
5
| Switching capacity | 1 Gbit/s |
|---|---|
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
Design
4
| Rack mounting | No |
|---|---|
| Stackable | No |
| Product colour | Black, Grey |
| LED indicators | Activity, Link, Power |
Performance
1
| Buffer size | 48 KB |
|---|
Power
5
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 2.5 W |
Power over Ethernet (PoE)
1
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
4
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
3
| Width | 125 mm |
|---|---|
| Depth | 69 mm |
| Height | 30 mm |
Packaging content
1
| Quick start guide | Yes |
|---|
Packaging data
5
| AC adapter included | Yes |
|---|---|
| Package width | 120 mm |
| Package depth | 100 mm |
| Package height | 156 mm |
| Package weight | 400 g |
Certificates
1
| Certification | FCC, CE, RoHS |
|---|
Logistics data
2
| Country of origin | China |
|---|---|
| Harmonized System (HS) code | 85176990 |
Manufacturer data: Open Icecat
Product description
LevelOne’s FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.
Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum…
Read more
LevelOne’s FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.
Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.
Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Magnetic base for easy placement
- Compact, lightweight design
