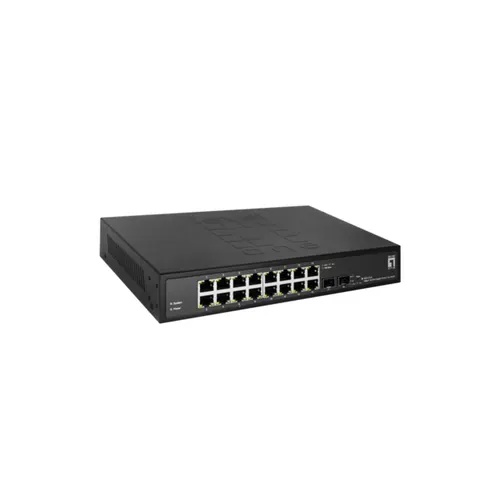

LEVELONE GES2118 - Switch, 18-Port, Gigabit Ethernet, SFP
- 16 Gigabit Ethernet ports and 2 Gigabit SFP slots
- Supports 8K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- IP Multicast Filtering through IGMP Snooping V1 / V2
- 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
No shop has this product right now. We keep watching the price.
Price history
- Now
- –
- Lowest
- €144.65
- Average
- €144.65
- Highest
- €144.65
Product details
| Brand | LevelOne |
|---|---|
| Category | PC accessories |
| Barcode (EAN) | 4015867229262 |
| On Pricuro since | 3 October 2026 |
Management features
4
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
4
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
Network
11
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 32 |
Data transmission
6
| Switching capacity | 36 Gbit/s |
|---|---|
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
Security
1
| IGMP snooping | Yes |
|---|
Multicast features
1
| Multicast support | Yes |
|---|
Design
3
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance
4
| Flash memory | 2 MB |
|---|---|
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 43800 h |
Power
6
| Power source | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 15 W |
| Surge protection | Yes |
| Surge protection voltage | 8 kV |
Power over Ethernet (PoE)
1
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
5
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 51.18 BTU/h |
Weight & dimensions
4
| Width | 271 mm |
|---|---|
| Depth | 181.5 mm |
| Height | 44.5 mm |
| Weight | 1.08 kg |
Packaging content
3
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
5
| Package type | Box |
|---|---|
| Package width | 350 mm |
| Package depth | 267 mm |
| Package height | 89 mm |
| Package weight | 1.68 kg |
Sustainability
1
| Sustainability compliance | Yes |
|---|
Technical details
4
| Master (outer) cases per pallet (air) | 12 pc(s) |
|---|---|
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 182.4 cm |
Certificates
2
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | UKCA, FCC Class A |
Logistics data
7
| Master (outer) case net weight | 1 kg |
|---|---|
| Country of origin | China |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 560 mm |
| Master (outer) case gross weight | 17.8 kg |
| Products per master (outer) case | 10 pc(s) |
Manufacturer data: Open Icecat
Product description
The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The…
Read more
The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
