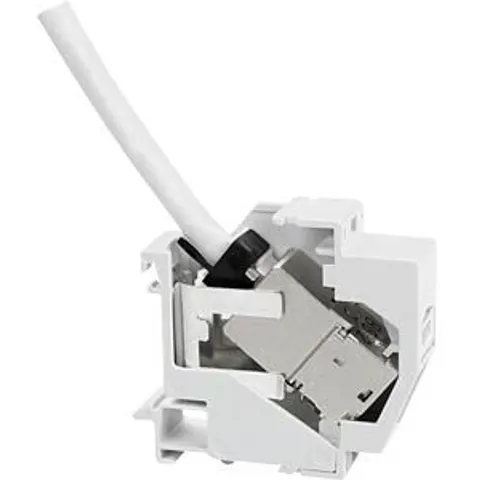

METZ CONNECT 1309428103-E keystone module

" Keystone REGplus IP20 light gray unassembled Connector unit unpopulated for mounting on DIN rail TH35 according to DIN EN 60715 for one single module in keystone design cable access variable 45° from top or bottom possible, plug-in direction 45° inclined downwards the width of 1HP allows the installation of up to 12 REGs in standard electrical distribution boards when installed as a device of protection class I, the potential equalization is carried out directly via the mounting rail by means of an integrated potential equalization plate. The mounting rail must be integrated into the building equipotential bonding system using appropriate measures. The device is protected against direct contact by a cover. Protection class II is therefore maintained when the device is installed in a distribution board with protective insulation. The equipotential bonding plate must be removed for this purpose. integrated dust protection flap (also available in color) suitable modules for cable access 45° from above: C6Amodul K 180°, E-DAT modul coupler 180°, UTP modul Cat.5e and Cat.6, suitable modules for cable access 45° from below: C6Amodul K 270° ATTENTION Not suitable for modules in modular design and C6Amodul K 90°!"
