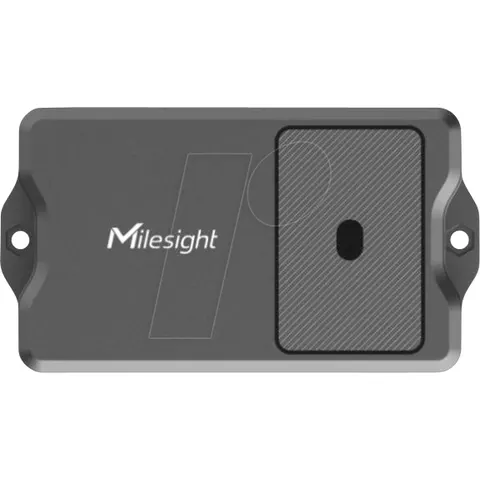

MILESIGHT MIL EM4-TLD - LoRaWAN ToF Laser Distance Sensor

" EM400-TLD ToF Laser Distance Sensor Tx Power: 16 dBm (868 MHz) Sensitivity: -137dBm @300bps ToF FoV: 27° Detection Range: 2 ~ 350 cm Ingress Protection: IP67 Highly Specialized, Reliable 3-in-1 Sensor Specialized for Smart Waste Management (Fill Level, Device Position, and Combustion) High Accuracy and Almost No Blind Spot Two Pre-set Modes for Seamless User Experience Battery Life of up to 10 Years Rugged and Reliable IP67 Rated Enclosure Positioning Function Enabled by GNSS Modules (NB-IoT version) EM400-TLD is a highly specialized product among the EM400 Series, which is designed for small & mini trash bins, boasts a range of powerful features, including the ability to detect overflowing garbage, the status of the garbage bin lid, and trash combustion. With pre-set modes that save users from configuration, EM400-TLD is the ideal solution for smart waste management, providing a performance that customers can rely on. Additionally, its availability in both LoRaWAN and NB-loT versions allows for a varietv of application scenarios. LoRaWAN® Version Wide Area Coverage: Data transmission range up to 2 km in urban areas and 15 km in rural areas : Low battery consumption enabled by LoRaWAN® technology More Deployment Freedom: Deployment options based on both private and public network facilities High Accuracy Guaranteed by ToF EM400-TLD employs time-of-flight (ToF) to detect and measure the distance to objects, ensuring almost no blind spots and a stable performance. Leveraging ToF technology, EM400-TLD can effectively monitor the fill level of small & mini trash bin with high accuracy and alert users to empty trash in time. Device Position/Device Tilt Status Monitoring The EM400-TLD is equipped with a built-in 3-axis accelerometer to detect the device position, which can be used to monitor the opening and closing of the trash bin lid. Combustion Monitoring With built-in NTC thermistor, EM400-TLD can monitor the temperature inside the garbage bin and send alert in time
