ODROID H3+ - Odroid H3+ Mini-PC - N6005

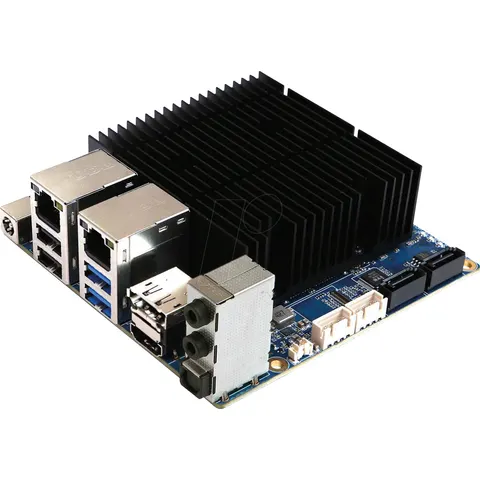

"The ODROID-H3+ has the same form factor as its predecessor, the ODROID-H2+. However, the H3+ is more powerful and offers higher performance. It is a brand-new x86 64-bit single-board computer with large storage capacity, advanced I/O ports, and high compatibility. The Intel® Jasper Lake N6005 quad-core processor has a base clock speed of 2 GHz and a boost clock speed of 3.3 GHz, with 1.5 MB of L2 and 4 MB of L3 cache, manufactured using a 10 nm process. Up to 64 GB of dual-channel DDR4 PC4-23400 (2933 MT/s) memory Two SO-DIMM slots, up to 32 GB per slot PCIe 3.0 x4 lanes for an M.2 NVMe storage device 2x 2.5 Gbit Ethernet ports 2x SATA 3.0 ports SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES) Intel UHD Graphics 32 EUs, Turbo 900 MHz HDMI 2.0 and DP 1.2 multiple video outputs A configurable Unlimited Performance mode that allows the CPU to run in sustained Turbo Boost mode. RTC / BIOS backup battery included The board features the following components (refer to the attached images for details):A. CPU (Intel Pentium Silver N6005) B. 2x DDR4 SO-DIMM slots (dual-channel memory support)C. 1x M.2 PCI Express module socket (NGFF-2280) D. 1x eMMC slot (embedded multimedia card)E. 2x SATA power connectors (2.5 mm pitch, JST-XH-compatible connector) F. 2x SATA3 6.0 Gb/s data ports G. 1x DC power connector H. 2x USB 3.0 I. 2x USB 2.0J. 1x HDMI 2.0K. 1x DisplayPort 1.2L. 2x RJ45 Ethernet ports (10/100/1000/2500) M. 5x system LED indicators N. 1x peripheral expansion connector (24-pin) O. 1x power switch P. 1x reset switch Q. 1x Backup battery connector (2-pin) R. 1x Active cooling fan connector (4-pin) S. 1x Audio output, 1x Audio input, 1x SPDIF output"
