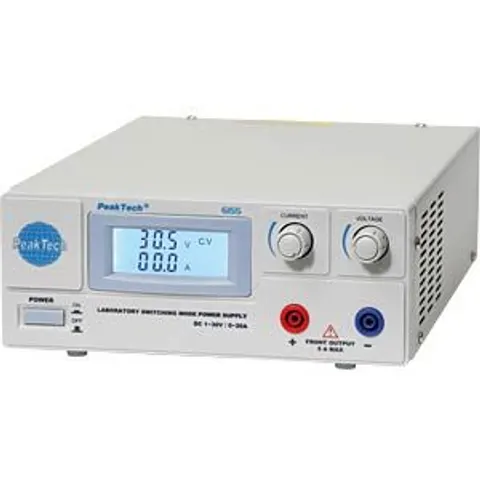

PEAKTECH 6155 - Laboratory power supply, 1 - 30 V DC, 0 - 20 A

A newly developed series of switching power supplies for a wide range of applications in the telecommunications sector, laboratories and industry. These power supplies are exceptionally resistant to close-range high-frequency interference. It features constant current protection, over-voltage protection and protection against over-temperature at constant current. This ensures the high reliability and durability of these power supplies. • Illuminated LCD display for showing the output voltage and current values • High efficiency • Protected against short circuit, overload and overheating • Adjustable voltage range: 1 - 30 V • DC output: terminal clamps up to 20 A • Safety: EN-61010-1 • Accessories: mains cable and user manual Technical data: Output voltage: 1 - 30 V DC Output current/rear terminals: 0 - 20 A Front-panel output jacks: 4 mm safety sockets up to 5 A Residual ripple: 50 m Vss/pp, 5 m Veff/rms Load regulation: 50 mV (10 - 100% load) Voltage regulation: 50 mV ( +/- 10% deviation) Display: 3-digit: +/- 0.2% + 3 digits Protection: overload, overheating, short circuit with constant current source and output over-voltage Operating voltage: 200 ~ 240 V AC, 50/60 Hz Dimensions (W x H x D): 214 x 87 x 336 mm Weight: 2.9 kg
