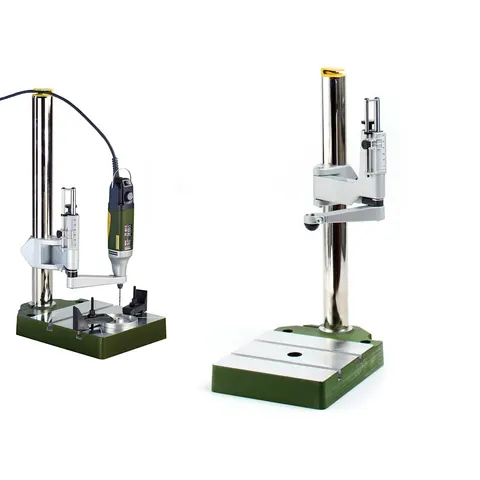

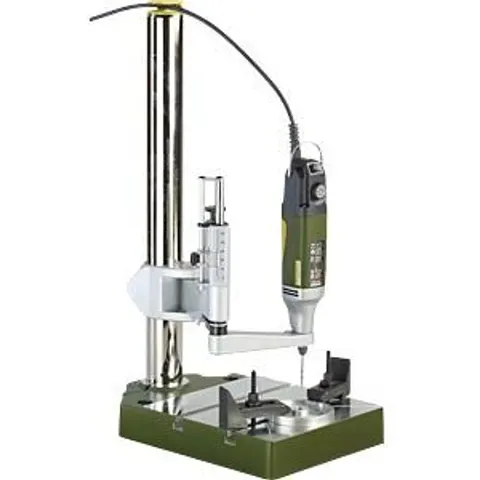

PROXXON 20002 - Bracket for MICROMOT machines, drill stand

"Drilling device BV 2000 A precise machine for parallel drilling, tapping and milling. Made from high-precision machined aluminium die-cast parts. 20-mm MICROMOT system fit. With double-swivelling articulated arm and 20 mm system fit. The clamped device always remains vertically aligned. Drill holes, for example, are bored exactly perpendicular to the workpiece surface! Pre-selectable drilling depth using depth stop with easy-to-read scale. An adjustable spring automatically pulls the device into the upper rest position after the drilling process. Face-milled, solid base plate with 200 x 200 mm usable table surface and two continuous T-grooves according to MIRCOMOT standard (12 x 6 x 5 mm). Stable drilling column (dia. 45 mm, length 500 mm). The 20 mm system fit enables precise clamping of drilling rigs such as fine drill grinders FBS 240/E, industrial drill grinders IBS/E, long-neck drill grinders LBS/E, MICROMOT 50, 50/E, 50/EF and MICROMOT 230/E. Pre-selectable drilling depth using depth stop with easy-to-read scale. 20 mm system fit for precise clamping of drilling devices. Double swivelling articulated arm. Face-milled, solid base plate with 200 x 200 mm usable table surface and two continuous T-grooves. Note: Industrial drill grinders IBS/E, MIS 1 and stepped clamping claws are not included in the scope of delivery."
