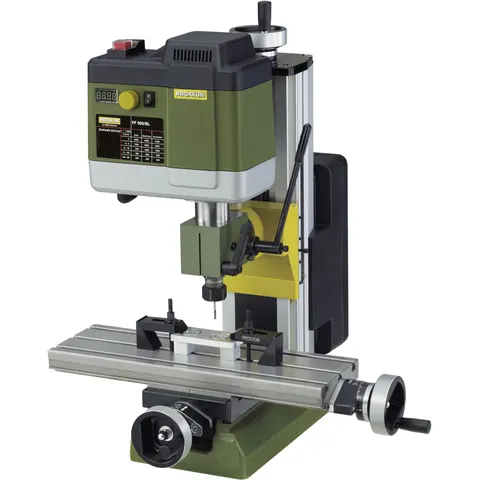

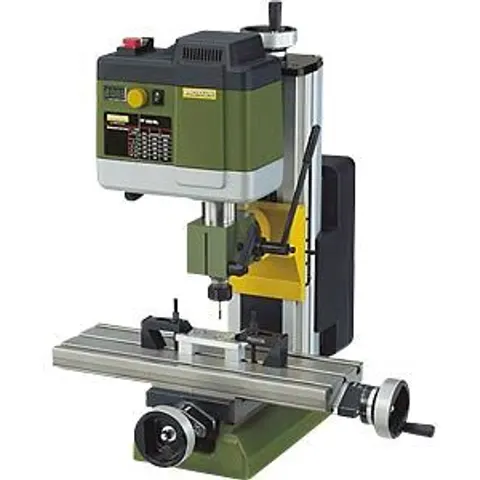

PROXXON 24350 - Milling machine FF 500/BL

With stepless speed preselection for 200 - 4000 rpm with high precision (accuracy 0.05 mm). With digital speed display. Sophisticated control via rotor-position and speed sensors guarantees high torque when using large cutters, even in the lower speed range. Solid column with dovetail guide. Cutting head can be swivelled 90° to the right and left (indicated on a scale). The sleeve can be clamped and is prepared for the attachment of the fine feed adapter NO 24 254. Tool chuck with multi-range collet chucks type ER 20: One piece each 6 - 8 - 10 and 12 mm are included. Height adjustment of the cutting head by means of a hand wheel. Solid, face-milled cross table made of steel with three continuous T-slots according to MICROMOT standard (12 x 6 x 5 mm). All three handwheels with scale ring (1 turn = 2 mm). Technical data: 230 V. 400 W. 50/60 Hz. Spindle speeds 200 - 4000 rpm. Throat 125 mm. Stroke: 30 mm. Column 120 x 100 x 430 mm. Table: 400 x 125 mm. Travel: vertical (Z axis) 220 mm, transverse (X axis) 310 mm, depth (Y axis) 100 mm. Dimensions: H = 750 mm, W = 550 mm, D = 550 mm. Weight: approx. 47 kg. Note: Clamping claws, cutters and workpiece are not included in the scope of delivery. New technology with brushless direct drive: quiet and vibration-free. Made in Germany.
