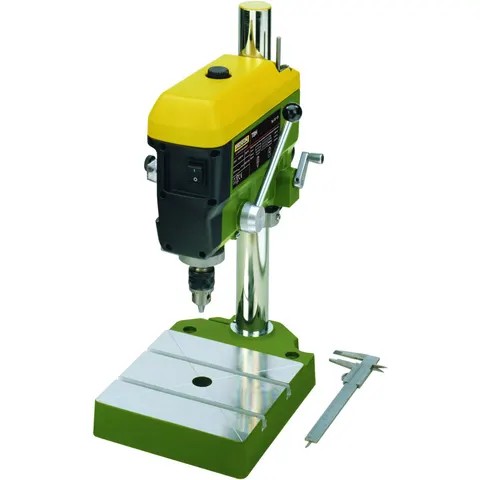

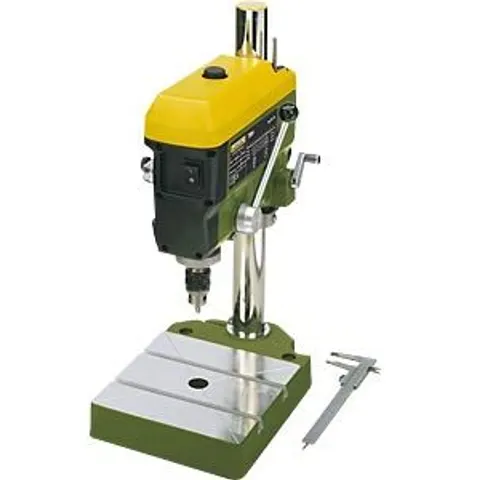

PROXXON 28124 - Table drill machine, MICROMOT, TBH

"Practical height adjustment via rack and pinion with smooth-running crank. Powerful, durable direct current motor. Spindle drive via three-speed pulley with the advantage of almost six times the torque in the lower speed range. Practical drill depth display with adjustable stop. Precision-mounted drilling spindle. Spindle head with 1/2"" thread for the associated ring-gear drill chuck (industrial quality). Spindle with additional holder for NO 28 200 steel collets. Ideal also for coordinate drilling with the KT 150 cross table. Technical data: 230 volts. Spindle speeds 1080, 2400 and 4500 rpm. Stroke 63 mm. Height adjustment via crank 70 mm. Throat: 140 mm. Usable table surface 200 x 200 mm. Column 45 x 500 mm. Tool holder up to 10 mm. Drill capacity in steel 10 mm. Weight: approx. 10 kg. Practical height adjustment via rack and pinion with side crank. Stable, highly ribbed, face-milled work table with two T-slots. Practical drill depth display with adjustable stop. Ideal also for coordinate drilling with the KT 150 cross table. Note: Table and cantilever of the table drill machine offered here are made of die-cast aluminium. A high-grade, stainless, statically very strong material. Fittings and guides are machined (milled, spindled, turned) on our state-of-the-art CNC-controlled machines."
