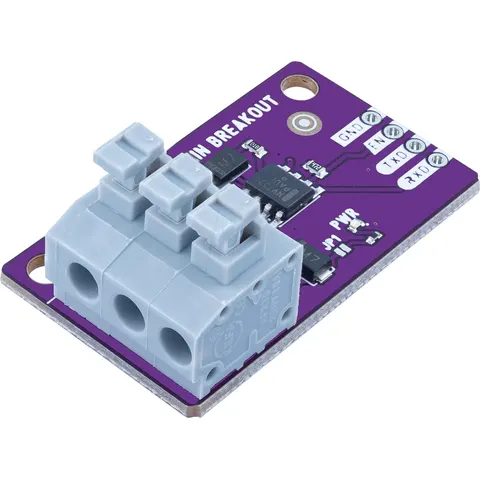

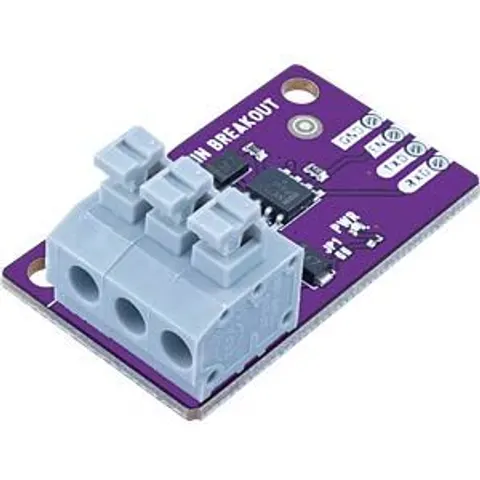

SOLDERED DEBO LIN 7329MST - Developer board - LIN Transceiver MASTER, NCV7329

"LIN (Local Interconnect Network) is a serial network protocol used for communication between components in vehicles. It serves as an alternative to the CAN bus and is characterized by a lower speed and the support of a smaller number of simultaneous devices, but also has significantly lower costs. LIN is used for communication between microcontrollers. The operating voltage is 18V. This breakout has a MASTER role. Master/slave is a communication model in which one device (master) controls one or more other devices (slave) and the slave then responds to the commands it receives from the master. A master in the LIN protocol can control up to 16 devices. Technical data max. data rate: 20 kbit/s max. number of devices: 16 max. bus length: 40 m Voltage: 18 V Dimensions: 21.3 x 22.6 x 12.3 mm external links https://github.com/SolderedElectronics/LIN-Transceiver-NCV7329-MASTER-breakout-hardware-design"
