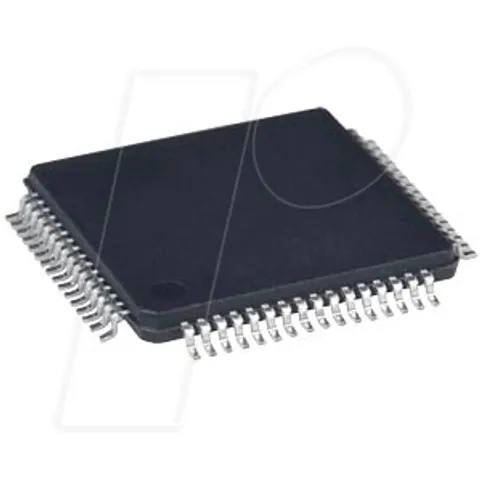

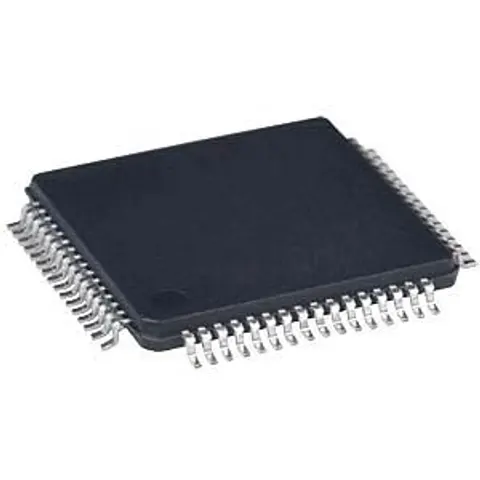

STMICROELECTRONICS STM32F103RFT6 - Microcontroller, Cortex M3, 72MHz,768KB Flash,80KB RAM,LQFP-64

Mainstream performance line, Arm Cortex-M3 MCU with 768 Kbytes flash memory, 72 MHz CPU, motor control, USB and CAN The STM32F103xF and STM32F103xG performance line family includes the powerful ARM®Cortex®-M3 32-bit RISC core operating at 72 MHz, embedded high-speed memory (Flash memory up to 1 MByte and SRAM up to 96 Kbytes) and an extensive range of advanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, ten 16-bit general purpose timers plus two PWM timers as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, one USB and one CAN. The STM32F103xF/G XL-Density-Performance-Line family operates in the temperature range from -40 to +105 °C and is operated with a supply voltage of 2.0 to 3.6 V. A comprehensive range of power saving modes enables the development of applications with low power consumption. These features make the STM32F103xF/G High-Density Performance Line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld devices, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems and video intercoms.
