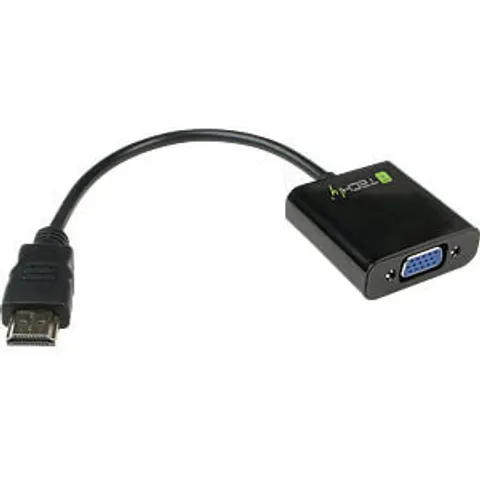

TECHLY IDA HDMI-VGA2 - HDMI to VGA Converter

Features • Easy to use: install in seconds, no need of configurations • Convert video source to HDMI VGA • Supports 165MHz / 1.65Gbps per channel (6.75Gbps all channels) of bandwidth for the HDMI input • Supports analog video output up to 1080p with 10-bit DAC. • HDCP Compliant Specifications • Input Video Signal: 0.5-1.0 volts p-p • Input DDC Signal: 5 volts p-p (TTL) • Input Connection: HDMI A Male (19pin) • Output connection: VGA Female • HDMI Video Format: 480p / 576p / 720p / 1080p • Format VGA video output: 480p / 576p / 720p / 1080p • Range of Vertical frequency: 50 / 60Hz • Bandwidth video Amplified: 1.65Gpbs / 165MHz Physical Information • Dimensions (WxHxD): 43 mm x 14 mm x 44 mm • HDMI cable length: 100 ± 10 mm • Weight (net) 0.037 ± 0.001kg General Information • Operating Temperature: 0 ° to + 70 ° C • Operating Humidity: 10% to 85% RH (non-condensing) • Storage Temperature: -10 ° to + 80 ° C • Storage Humidity: 5% to 95% RH (non-condensing) • Consumption (Max) 2W Certifications • CE • FCC • RoHS • WEEE Package Contents • Converter HDMI to SVGA • Instruction Manual
