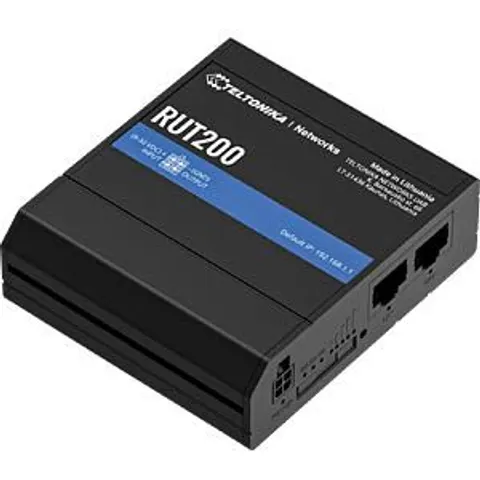

Teltonika RUT200 Cellular network router

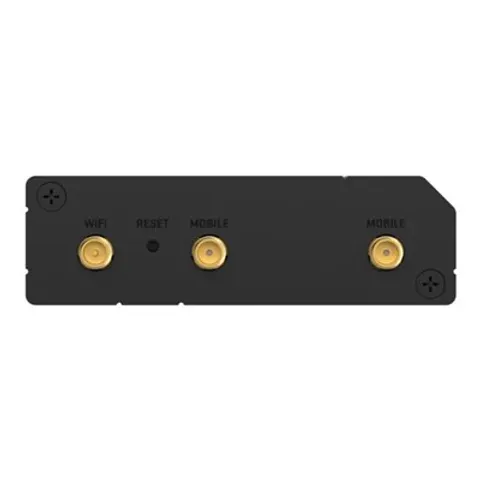

9 W power supply 2 x LTE antennas (SMA male) 1 x WiFi antenna (RP-SMA male) RUT200 router Quick reference guide Packaging RMS flyer RUT200INDUSTRIAL CELLULAR ROUTERRUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities. Design Device type Cellular network router Product colour Black Housing material Aluminium, Plastic Reset button Yes LED indicators LAN, Power Ethernet LAN features Ethernet LAN Yes Ethernet LAN interface type Fast Ethernet Ethernet LAN data rates 10,100 Mbit/s Networking standards IEEE 802.3, IEEE 802.3u Auto MDI/MDI-X Yes Supported network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) Wireless LAN features Wi-Fi Yes Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n) Mobile network Data network 2G, 3G, 4G 4G standard LTE SIM card type MiniSIM Short Message Service (SMS) Yes Ports & interfaces Ethernet LAN (RJ-45) ports 2 USB port No Security Security algorithms AES-CCMP, TKIP, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK Network address translation (NAT) Yes Firewall Yes DMZ support Yes Port forwarding Yes Certificates Certification CB Performance Built-in processor Yes Processor manufacturer MediaTek Processor frequency 0.58 GHz RAM capacity 0.128 GB RAM type DDR2 Operating system installed RutOS Web-based management Yes Antenna connector type SMA/RP-SMA Antennas quantity 3 Power Power source type DC Operational conditions Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) -40 - 75 °C Weight & dimensions Width 83 mm Depth 74 mm Height 25 mm Weight 125 g leaflet
