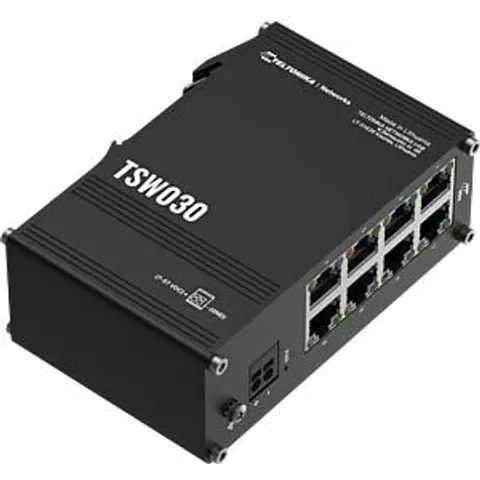

TELTONIKA TSW030 - Switch, 8-Port, Fast Ethernet

2-PIN POWER INPUT Simple and suitable for industrial applications LOW POWER CONSUMPTION Up to 0.5 W when idle, up to 1.5 W maximum INTEGRATED DIN RAIL Easy mounting for plug-and-play deployment 8 X RJ45 PORTS Eight 10/100 Mbps Ethernet ports The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices. Management features Switch type Unmanaged Web-based management No Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) Fast Ethernet (copper) ports quantity 8 Network Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support No Ethernet LAN data rates 10,100 Mbit/s Data transmission MAC address table 2048 entries Switching capacity 20 Gbit/s Jumbo frames support Yes Jumbo frames 9216 Design Rack mounting No Stackable No Product colour Black Housing material Aluminium Reset button Yes LED indicators LAN, Power, Status DIN rail mounting Yes Power Power source DC Power supply included No DC input voltage 7 - 57 V Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 10 - 90% Certificates Certification CE, UKCA, EAC, UCRF, RCM, FCC, IC, CBStandardsEN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
