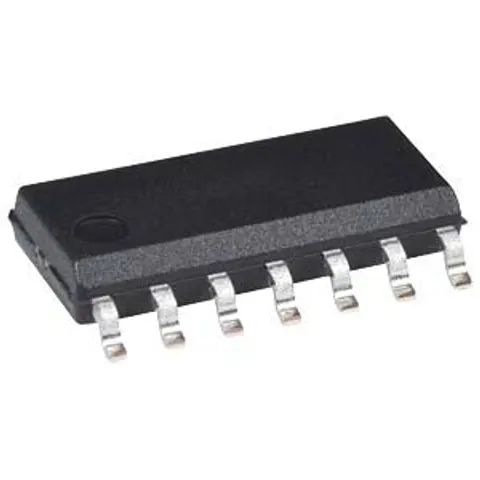

TEXAS INSTRUMENTS CD 4066BM TEX - Switch, Quad, 3 ... 18 V, SO-14

Description The CD4066B device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016B device, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signalinput range. The CD4066B device consists of four bilateral switches, each with independent controls. Both the p and the n devices in a given switch are biased on or off simultaneously by the control signal. As shown in Figure 17, the well of the n-channel device on each switch is tied to either the input (when the switch is on) or to VSS (when the switch is off). This configuration eliminates the variation of the switchtransistor threshold voltage with input signal and, thus, keeps the on-state resistance low over the full operating-signal range. The advantages over single-channel switches include peak input-signal voltage swings equal to the full supply voltage and more constant on-state impedance over the input-signal range. However, for sample-and-hold applications, the CD4016B device is recommended. Features • 15-V Digital or ±7.5-V Peak-to-Peak Switching • 125-O Typical On-State Resistance for 15-V Operation • switch On-State Resistance Matched to Within 5 O Over 15-V Signal-Input Range • on-State Resistance Flat Over Full Peak-to-Peak Signal Range • high On or Off Output-Voltage Ratio: 80 dB Typical at fis = 10 kHz, RL = 1 kO • high Degree of Linearity: VDD – VSS = 10-V, RL = 10 kO • extremely Low Off-State Switch Leakage, Resulting in Very Low Offset Current and High Effective Off-State Resistance: 10 pA Typical at VDD – VSS = 10-V, TA = 25°C • extremely High Control Input Impedance (Control Circuit Isolated From Signal Circuit): 1012 O Typical • low Crosstalk Between Switches: –50 dB Typical at fis = 8 MHz, RL = 1 kO • matched Control-Input to Signal-Output Capacitance: Reduces Output Signal Transients • frequency Response, Switch On = 40 MHz Typica
