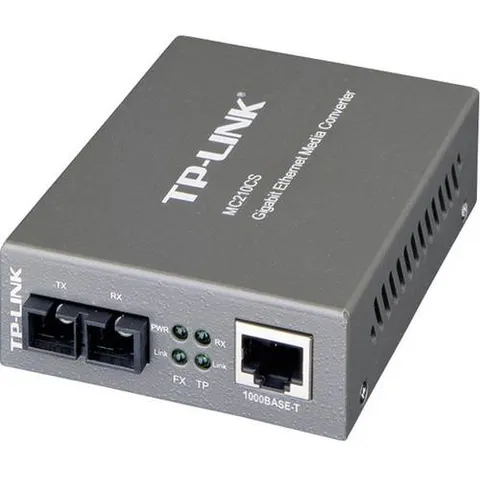

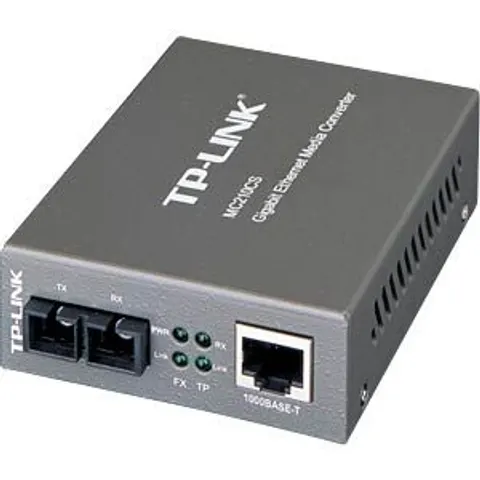

TP-LINK TPLINK MC210CS - 1000BaseTX>1000Base FX single mode converter

Gigabit Ethernet media converter • Complies with the standards IEEE802.3ab and IEEE802.3z. • FX-port toggles between force and auto mode. • Fibre-optic transmission distance of up to 15 km The MC210CS is a media converter designed for converting 1000BASE-LX/LH fibre media into 1000Base-T copper media and vice versa. The MC210CS was designed according to the 1000Base-T standard (IEEE802.3ab) and the 1000Base-LX/LH standard (IEEE802.3z) and is intended for use with single fibre-optic cables and the SC plug. The MC210CS supports the long-wave (LX) laser specification for a transfer rate corresponding to the full bandwidth. It functions at 1310nm for both transmitting and receiving data. Other features of this module include: the option of using the device as a stand-alone device (no enclosure required) or with the 19 inch system enclosure from TP-LINK, auto MDI/MDIX for the transmission port, and status LED on the front. The MC210CS transmits inn fibre-optic long distance mode via the single mode fibre-optic cable over a distance of up to 15 km. • Works at 1000 Mbps for both the TX port and also for the FX port in full duplex mode. • TX port with support for auto MDI/MDIX • Provides the switch configurations for force mode and auto transfer modes for the FX-port • Fibre-optic transmission distance of up to 15 km. • Easily visible LEDs display the status, allowing the network to be easily monitored. • External power supply unit.
