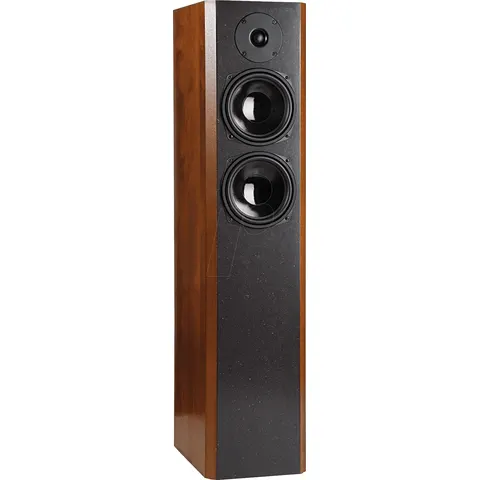

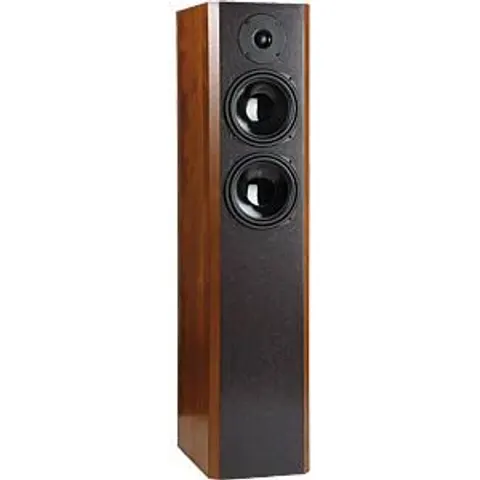

VIS CLOU - VISATON CLOU kit, pair

"The CLOU is a slim 2-way floorstanding speaker whose appeal lies clearly in its price/performance ratio, which is underlined by the two WS 17 E 8 Ohm for low to mid frequencies and the SC 10 N 8 Ohm for the high frequencies. In order to ensure a balanced sound image even with these inexpensive drivers, the two mid-bass drivers were spatially separated from each other and each assigned its own closed volume. The lower WS 17 E 8 Ohm plays in a 36 l housing. This results in an even increase of the frequency response from 60 Hz up to 600 Hz. The upper WS 17 E 8 Ohm, on the other hand, has to manage with a volume of 16 l, which results in a slight increase of the frequency range between 60 Hz and 150 Hz. All in all, the two mid-bass drivers add up to a harmonic bass foundation with a targeted emphasis on frequencies from 60 to 130 Hz. In order to connect the tweeter seamlessly to the bass speakers, a correctly dimensioned wave trap is required that smoothes unwanted peaks and resonances. The result of this unusual chassis and cabinet combination is a floorstanding speaker that is absolutely worth seeing and listening to, and which operates far beyond its price range in terms of sound quality. Technical data Nominal power handling 100 W Music power handling 150 W Nominal impedance Z 4 Ohm Frequency range (-10 dB) 38 - 20000 Hz Scope of delivery: 2x tweeter SC 10 N - 8 Ohm 4x WS 17 E bass-midrange driver - 8 Ohm 2x connection terminal ST 77 4 Polyester wool damping material 2x crossover crossover CLOU 24x wood screws 3,5 x 19 mm 8x countersunk screws 3,5 x 25 mm 2x 2.5m cable 2 x 1.5 mm² Not expressly included in the delivery programme are the speaker housings, which must be manufactured by the user himself!! http://www.visaton.de/de/bauvorschlaege/stand/clou/bauvorschlag.html"
