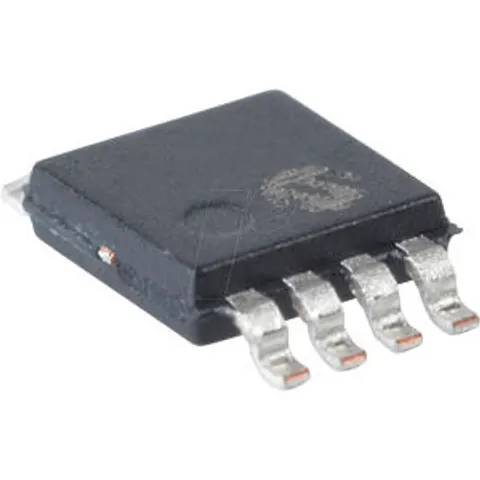

VISHAY IL 207AT VIS - Optocoupler SO-8

"The IL205AT/206AT/207AT/208AT are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. This family comes in a standard SOIC-8A small outline package for surface mounting which makes them ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices. A specified minimum and maximum CTR allows a narrow tolerance in the electrical design of the adjacent circuits. The high BVCEO of 70 volts gives a higher safety margin compared to the industrystandard 30 volts. Features • high Current Transfer Ratio - IF=10 mA, VCE=5.0 V - IL205AT, 40–80% - IL206AT, 63–125% - IL207AT, 100–200% - IL208AT, 160–320% • high BVCEO, 70 V • isolation Test Voltage, 3000 VRMS, 1 s • industry Standard SOIC-8A Surface Mountable Package • standard Lead Spacing, .05"" • compatible with Dual Wave, Vapor Phase and IR Reflow Soldering • VDE 0884 Available with Option 1 • underwriters Lab File #E52744 (Code Letter Y) Maximum Ratings, TA=25°C (except where noted) Emitter • Peak Reverse Voltage...6.0 V • Continuous Forward Current...60 mA • Power Dissipation at 25°C...90 mW • Derate Linearly from 25°C....1.2 mW/°C Detector • Collector-Emitter Breakdown Voltage...70 V • Emitter-Collector Breakdown Voltage...7.0 V • Collector-Base Breakdown Voltage...70 V • ICMAX DC...50 mA • ICMAX (t • Power Dissipation...150 mW • Derate Linearly from 25°C...2.0 mW/°C Package • Total Package Dissipation at 25°C Ambient • (LED + Detector)...240 mW • Derate Linearly from 25°C...3.3 mW/°C • Operating Temperature...–55°C to +100°C • Storage Temperature...–55°C to +150°C • Soldering Time at 260°C...10 s"
